White Light Interference Objective Lenses
Our white light interferometry objectives enable high-precision, non-contact 3D surface profiling. By interpreting interference fringes, they measure topography and defects for quality control in industries like aerospace, photovoltaics, and microelectronics.
Customization is available for this product. Download, fill up the form and send it to info@wavelength-tech.com

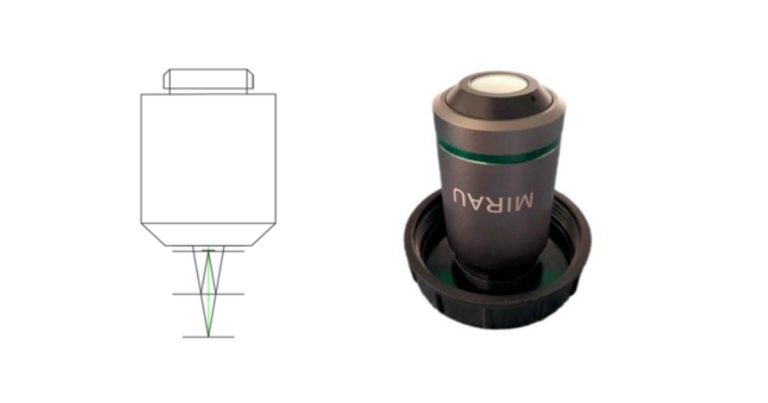

Mirau Interference Objective Lenses
Featuring a compact structure designed to deliver high-contrast interference fringes, our objective lenses ensure precise optical path alignment between the reference mirror and the sample surface. Compatible with all infinity-focus metallurgical microscopes, they are engineered to accurately measure surface topography even on objects with reflectivity as low as 0.5%.
Part Number | WLI-Mir-10X-0.25 | WLI-Mir-10X-0.3 | WLI-Mir-20X | WLI-Mir-50X | |
Magnification | 10X | 10X | 20X | 50X | |
Optical Design | Mirau | ||||
Numerical Aperture (NA) | 0.15 | 0.3 | 0.4 | 0.55 | |
Parfocal Distance (mm) | 45 | ||||
Working Distance (mm) | 7.4 | 7.4 | 3.5 | 1.7 | |
Focal Length (mm) | 20 | 20 | 10 | 4 | |
Depth Of Field (µm) | 10 | 10 | 3.5 | 1.4 | |
Resolution (µm) | 1.34 | 1.34 | 0.8 | 0.61 | |
Field Of View (mm) | ½”CCD | 0.65 x 0.45 (φ0.8) | 0.65 x 0.45 (φ0.8) | 0.33 x 0.23 (φ0.4) | 0.13 x 0.09 (φ0.16) |
½”CCD+0.5X | 1.3 x 0.9 (φ1.6) | 1.3 x 0.9 (φ1.6) | 0.65 x 0.45 (φ0.8) | 0.26 x 0.18 (φ0.32) | |
Diameter (mm) | 28 | 30 | 28 | 27.6 | |
Weight (g) | 85 | 114 | 102 | 110 | |
Operating Wavelength (nm) | 400~700nm | ||||
Sample Reflectivity (%) | ≥ 0.5% | ||||
Interface | 4/5X1/35’（M20.32X0.705） | ||||

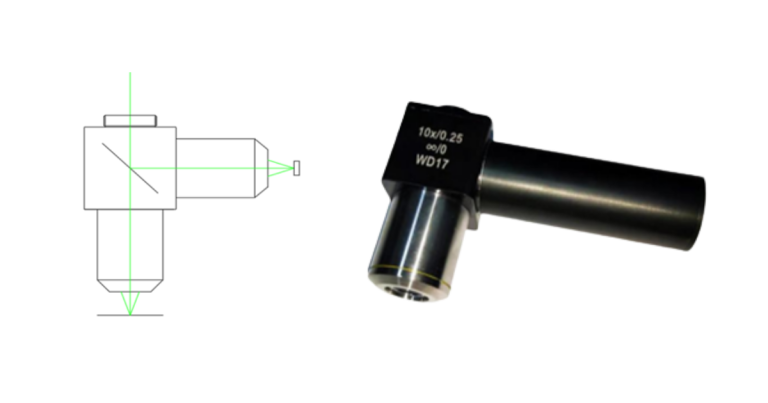

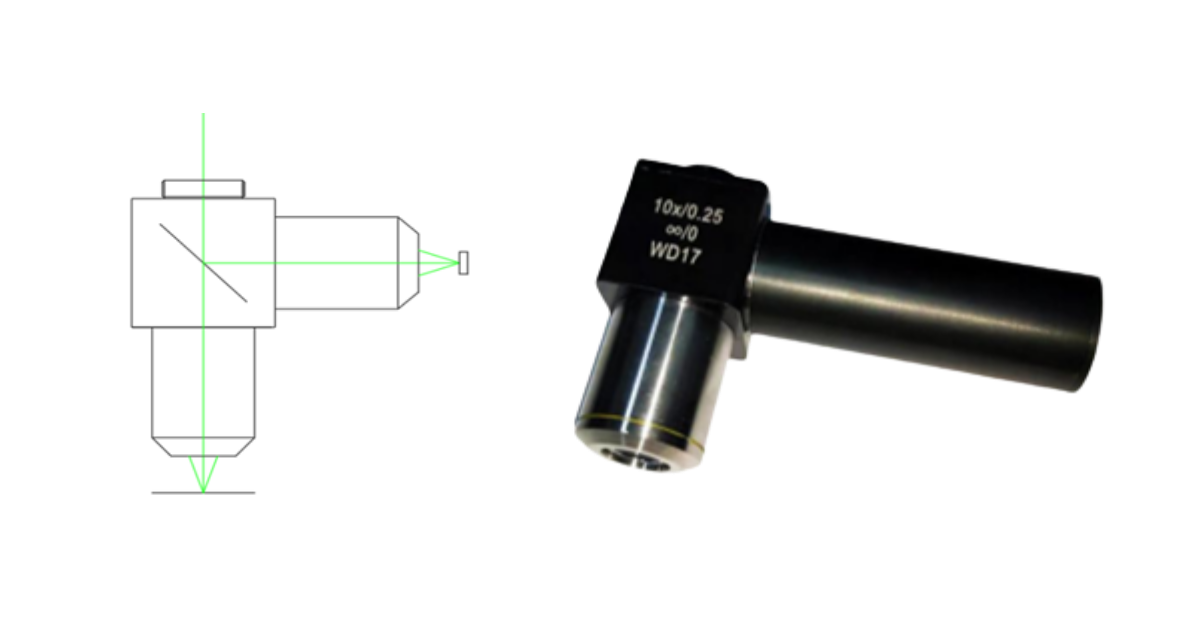

Linnik Interference Objective Lenses
Featuring a Linnik structure design with two perfectly matched objectives, our interferometer lenses ensure identical optical path lengths for high-precision measurement. Compatible with infinity-focus microscopes and custom systems, they are designed for long working distances and can measure samples with reflectivity as low as 0.5%. The innovative white-light design delivers clear surface images and interference fringes, even on challenging samples.
Part Number | WLI-Lin-5X | WLI-Lin-10X | |
Magnification | 5X | 10X | |
Optical Design | Linnk | ||
Numerical Aperture (NA) | 0.12 | 0.25 | |
| Parfocal Distance (mm) | 80 | 80 | |
| Working Distance (mm) | 17 | 17 | |
| Depth Of Field (µm) | 40 | 10 | |
| Resolution (µm) | 1.34 | 1.34 | |
Field Of View (mm) | ½”CCD | 1.3×0.9 (φ1.6) | 0.65×0.45 (φ0.8) |
| ½”CCD+0.5X | 2.6X1.8 (φ3.2) | 1.3X0.9 (φ1.6) | |
Diameter（mm） | 28 | 30 | |
Weight（g） | 85 | 114 | |
Interface | 4/5×1/36’ | ||
Options | Parfocal 95mm Rotatable Adapter | ||

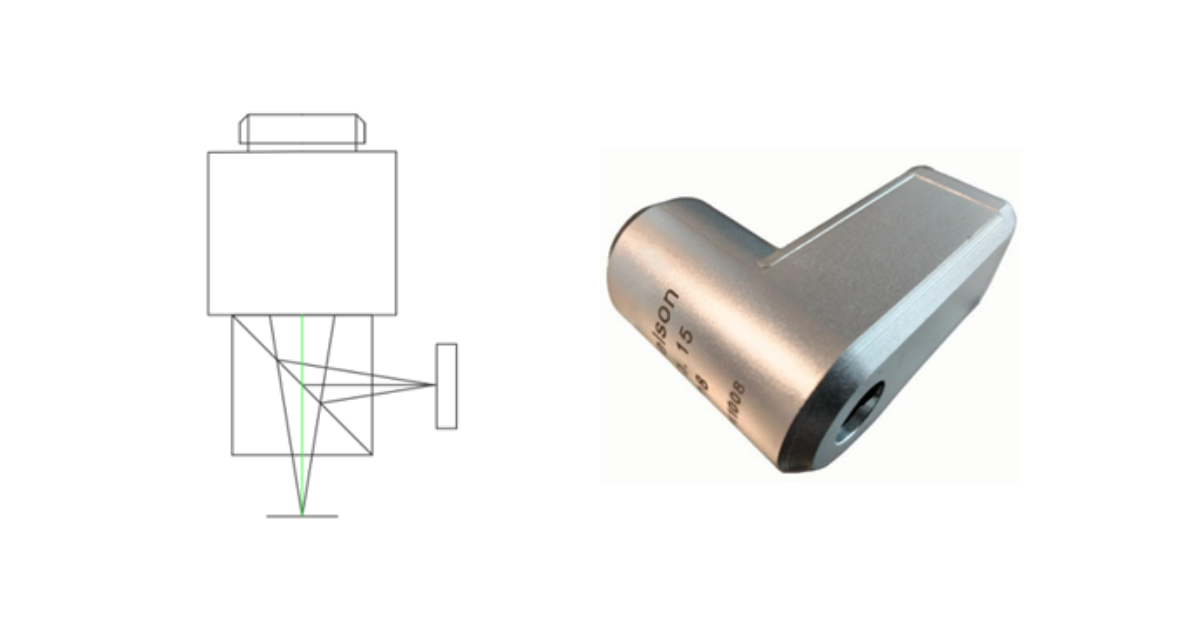

Michelson Interference Objective Lenses
Designed with a beam splitter integrated into a long-working-distance objective, our compact interferometer moves the reference mirror to the side for optimized performance. Compatible with all infinity-focus metallurgical microscopes, it delivers high-contrast interference fringes and can measure objects with reflectivity as low as 0.5%, making it ideal for applications requiring 5X magnification or less.
Part Number | WLI-Mich-5X | |
Magnification | 5X | |
Optical Design | Michelson | |
Numerical Aperture (NA) | 0.15 | |
Focal Length (mm) | 40 | |
Working Distance (mm) | 9 | |
Depth Of Field (µm) | 43 | |
Resolution (µm) | 2.8 | |
Field Of View (mm) | ½”CCD | 1.3×0.9 (φ1.6) |
½”CCD+0.5X | 2.6X1.8 (φ3.2) | |
Operating Wavelength | 400 – 700nm | |
Sample Reflectivity | ≥ 0.5% | |
Interface | 4/5X1/35’（M20.32X0.705） | |
