Consumer Molded Optics Materials

Material	Model
EP	EP5000	EP6000	EP7000	EP8000
OKP	OKP4HT-L	OKP-1	OKP-A1	OKP-A2
APEL	APEL5014CL	APEL5514ML	APEL5015AL
ZEONEX	ZEONEX 480R	ZEONEX E48R	ZEONEX K26R	ZEONEX F52R
PMMA	VH001
PC	AD5503

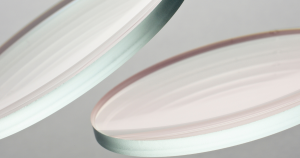

IR Materials

Glass Materials

Status Flags: S-Standard, P-Preferred, X-Special

Index@588nm	Abbe	CDGM	-	SCHOTT	-	OHARA	-	HOYA	-
1.45843847	67.826674	Fused Silica	-	Lithosil Q	-	Fused Silica	-	-	-
1.45649997	90.269745	H-FK71	S	-	-	-	-	FCD10A	P
1.47046637	66.884514	H-QK1	S	-	-	-	-	-	-
1.4874908	70.41964	H-QK3L	P	N-FK5	P	S-FSL5Y	S	FC5	S
1.49699811	81.594687	H-FK61	P	N-PK52A	P	S-FPL51	P	MC-FCD1-M20	P
1.49967283	62.090817	H-K1	S	-	-	-	-	-	-
1.50046891	66.052454	H-K2	S	-	-	-	-	-	-
1.50463125	64.779924	H-K3	S	-	-	-	-	-	-
1.50802067	61.061308	K4A	S	N-ZK7A	P	-	-	-	-
1.51007225	63.364525	H-K5	S	-	-	-	-	-	-
1.51112545	60.478905	H-K6	S	K7	P	-	-	-	-
1.51477833	60.607173	H-K7	S	-	-	-	-	-	-
1.51602017	56.810596	H-K8	S	K5G20	X	-	-	-	-
1.51679695	64.212351	H-K9L	P	P-BK7	P	S-BSL7	P	BSC7	S
1.51741914	52.189002	H-KF6	S	-	-	-	-	E-CF6	S
1.51817569	58.950076	H-K10	S	-	-	S-NSL3	P	E-C3	S
1.52249028	59.512324	H-K50	S	N-K5	P	-	-	-	-
1.52307396	58.658089	H-K51	S	-	-	-	-	-	-
1.52638155	60.203222	H-K11	S	-	-	-	-	-	-
1.53027925	60.474448	H-BAK1	S	-	-	-	-	-	-
1.5317221	48.851958	H-QF6A	S	-	-	S-TIL6	P	-	-
1.53358875	55.469983	H-K12	S	-		-	-	-	-
1.53996374	59.730319	H-BAK2	S	N-BAK2	P	-	-	-	-
1.54072321	47.229943	H-QF8	S	-	-	S-TIL2	P	E-FEL2	S
1.54678038	62.741102	H-BAK3	S	-		-	-	-
1.54814096	45.832966	H-QF1	S	LLF1HTI	P	S-TIL1	P	E-FEL1	S
1.55247892	63.372062	H-BAK4	S	N-PSK3	P	-	-	-	-
1.56068935	58.344848	H-BAK5	S	-		-	-	-
1.56388499	60.791427	H-BAK6	S	N-SK11	P	S-BAL41	P	BACD11	X
1.56732022	42.807794	H-QF56	S	-	-	S-TIL26	P	E-FL6	S
1.56883193	56.059608	H-BAK7	P	N-BAK4HT	P	-	-	BAC4	S
1.56888297	62.960665	H-ZK1	S	-	-	S-BAL22	X	-	-
1.56970192	49.448232	H-BAF2	S	-		-	-	-	-
1.57249905	57.520834	H-BAK8	S	N-BAK1	P	-	-	-	-
1.57500892	41.506694	H-QF3	S	-	-	S-TIL27	P	-	-
1.57956771	53.737216	H-BAF3	S	N-BALF4	P	-	-	-	-
1.58143922	40.749269	H-QF50A	S	LF5HTI	P	S-TIL25	P	E-FL5	S
1.58313204	59.45598	H-ZK2	S	P-SK57Q1	P	S-BAL42	P	MC-BACD12	P
1.58912793	61.247611	H-ZK3	P	P-SK58A	P	S-BAL35	P	MC-BACD5N	P
1.59280664	68.525033	H-ZPK5	S	-	-	-	-	FCD515	P
1.59348975	67.326618	H-ZPK3	S	-		-	-	-
1.5955122	39.228024	H-QF14	S	-	-	S-TIM8	P	-	-
1.60300104	65.45962	H-ZPK2A	S	-	-	S-PHM53	P	-
1.6031119	60.633158	H-ZK14	P	N-SK14	P	S-BSM14	P	BACD14	S
1.60342294	38.009116	H-F1	P	F5	P	S-TIM5	P	E-F5	S
1.60562449	43.880593	H-BAF5	S	N-BAF4	P	S-BAM4	P	-	-
1.60738223	56.667022	H-ZK50	S	N-SK2HT	P	S-BSM2	P	-	-
1.60801466	46.220006	H-BAF6	S	-		-	-	-	-
1.61117334	55.812649	H-ZK5	S	-	-	-	-	-	-
1.61271854	58.604851	H-ZK6	S	N-SK4	P	S-BSM4	P	BACD4	X
1.61293389	37.008185	H-F2	S	-	-	S-TIM3	P	-	-
1.61339529	44.166804	H-TF3L	S	-	-	S-NBM51	P	-	-
1.61404668	55.142852	H-ZK8	S	-	-	S-BSM9	P	-	-
1.61720299	53.9284	H-ZK20	S	-	-	-	-	-	-
1.6179984	63.405767	H-ZPK1A	P	N-PSK53A	P	S-PHM52	P	PCD4	P
1.62004738	36.34792	H-F4	P	N-F2	P	S-TIM2	P	E-F2	S
1.62041204	60.373876	H-ZK9B	P	N-SK16	P	S-BSM16	P	BACD16	S
1.62209415	56.726025	H-ZK10	S	-	-	-	-	-	-
1.62229747	53.199535	H-ZBAF1	S	N-SSK2	P	S-BSM22	P	-	-
1.62280214	56.951885	H-ZK10L	P	-	-	S-BSM10	P	-	-
1.62299493	58.154171	H-ZK21	P	-	-	S-BSM15	P	MP-BACD15	P
1.6258861	35.71379	H-F13	P	-	-	S-TIM1	P	-	-
1.62604383	39.078919	H-BAF8	S	-	-	-	-	-	-
1.63854269	55.471523	H-ZK11	P	-	-	S-BSM18	P	BACD18	S
1.63980212	34.486325	H-F51	S	-	-	S-TIM27	P	-	-
1.64000191	60.213997	H-LAK4L	S	N-LAK21	P	S-BSM81	P	-	-
1.64769325	33.842283	H-ZF1	P	SF2	P	S-TIM22	P	E-FD2	S
1.65113294	55.903805	H-LAK10	S	N-LAK22	P	-	-	-	-
1.651605	58.416296	H-LAK50A	S	N-LAK7	P	S-LAL7	P	LAC7	X
1.65691401	51.15659	H-ZBAF3	S	-	-	-	-	-
1.65843931	50.8665	H-ZBAF50	P	N-SSK5	P	S-BSM25	P	BACED5	S
1.65949988	57.385393	H-LAK1	S	-	-	-	-	-	-
1.66426398	35.501048	H-ZBAF4	S	-	-	-	-	-
1.66461272	54.657841	H-LAK11	S	-	-	-	-	-
1.66672381	48.431709	H-ZBAF16	S	-	-	S-BAH11	P	BAF11	X
1.66680503	33.056453	H-ZF39	S	-	-	S-TIM39	P	-	-
1.67000255	51.758578	H-LAK67	S	-	-	-	-	-	-
1.6700313	47.197459	H-ZBAF52	P	N-BAF10	P	S-BAH10	P	BAF10	X
1.67270157	32.17888	H-ZF2	P	SF5	P	S-TIM25	P	E-FD5	S
1.67790269	55.559699	H-LAK5A	P	-	-	-	-	LAC12	X
1.68892979	31.160527	H-ZF10	P	P-SF8	P	S-TIM28	P	MP-FD80	P
1.69099862	54.859424	H-LAK59A	S	N-LAK9	P	S-LAL9	P	LAC9	X
1.69350139	53.347668	H-LAK6A	S	P-LAK35	P	S-LAL13	P	MC-LAC130	P
1.69363054	49.233011	H-LAF1	S	-	-	-	-	-	-
1.69679978	55.534184	H-LAK51A	P	N-LAK14	P	S-LAL14	P	MP-LAC14-80	P
1.69680123	56.199825	H-LAK12	S	-	-	-	-	-	-
1.69894826	30.053069	H-ZF11	S	N-SF15	P	S-TIM35	P	E-FD15	S
1.70000007	48.109868	H-LAF51	S	-	-	S-LAM51	P	-	-
1.70154522	41.140848	H-ZBAF20	S	-	-	S-BAH27	P	BAFD7	S
1.71300364	53.868142	H-LAK7A	P	N-LAK8	P	S-LAL8	P	LAC8	P
1.71699585	47.920216	H-LAF2	S	-	-	S-LAM3	P	LAF3	S
1.71736082	29.509994	H-ZF3	P	SF1	P	S-TIH1	P	E-FD1	S
1.71999882	43.691154	H-LAF62	S	-	-	S-LAM52	P	-	-
1.72000035	50.351963	H-LAK8A	S	-	-	S-LAL10	P	LAC10	X
1.72341752	38.022035	H-ZBAF21	P	-	-	S-BAH28	P	BAFD8	S
1.72825449	28.310916	H-ZF4A	P	SF10	P	S-TIH10	P	E-FD10	S
1.72916425	54.669031	H-LAK52	P	N-LAK34	P	S-LAL18	P	TAC8	P
1.73400013	51.494023	H-LAK54	S	-	-	S-LAL59	P	-	-
1.74000549	28.291496	H-ZF5	S	-	-	S-TIH3	P	-	-
1.74077287	27.761693	H-ZF50	S	-	-	S-TIH13	P	E-FD13	S
1.74099899	52.676196	H-LAK61	S	-	-	S-LAL61	P	TAC2	X
1.74330461	49.238028	H-LAF53	P	N-LAF35	P	S-LAM60	P	NBF1	S
1.74400356	44.904207	H-LAF3B	P	N-LAF2	P	S-LAM2	P	LAF2	S
1.7469343	51.008591	H-LAK3	S	-	-	-	-	MP-TAC60-90	P
1.74950051	35.020925	H-LAF4	P	LAFN7	P	-	-	-	-
1.75367131	37.495125	H-LAFL5	S	-	-	-	-	-	-
1.75500212	52.329298	H-LAK53A	P	N-LAK33B	P	S-YGH51	P	TAC6	X
1.75520518	27.547441	H-ZF6	P	SF4	P	S-TIH4	P	E-FD4	S
1.75700259	47.713789	H-LAF6LA	S	-	-	S-LAM54	P	-	-
1.76182349	26.613203	H-ZF12	S	N-SF14	P	S-TIH14	P	FD140	S
1.76200417	40.106913	H-LAF55	S	-	-	S-LAM55	P	-	-
1.77250131	49.613485	H-LAF50B	P	N-LAF34	P	S-LAH66	P	MC-TAF105	P
1.78179635	37.094648	H-LAF7	S	-	-	-	-	-	-
1.78472134	25.719658	H-ZF13	P	SF11	P	S-TIH11	P	FD110	S
1.78590057	44.206711	H-LAF52	S	N-LAF33	P	S-LAH51	P	-	-
1.78799784	47.516598	H-LAF10LA	S	N-LAF21	P	S-LAH64	P	TAF4	X
1.79951852	42.253294	H-LAF54	S	N-LAF36	X	S-LAH52	P	NBFD12	X
1.80099949	34.972131	H-ZLAF66	P	N-LASF45HT	P	S-LAM66	P	-	-
1.8016627	44.282314	H-ZLAF1	S	-	-	-	-	-	-
1.80279302	46.774142	H-ZLAF2A	S	-	-	S-LAH65V	P	-	-
1.80400871	46.567682	H-ZLAF50E	P	N-LASF44	P	S-LAH65VS	P	TAF3	S
1.80450494	39.639509	H-ZLAF51	P	-	-	S-LAH63	P	NBFD3	S
1.80518932	25.47729	H-ZF7LA	P	SF6	P	S-TIH6	P	FD60	S
1.80610491	33.286897	H-ZLAF56B	P	-	-	-	-	NBFD15	S
1.80610512	41.023451	H-ZLAF52A	P	P-LASF51	P	S-LAH53V	P	MC-NBFD135	P
1.80810763	22.690566	H-ZF71	S	-	-	S-NPH1W	P	FD225	P
1.81600144	46.56921	H-ZLAF69	S	-	-	S-LAH59	P	TAF5	X
1.8339965	37.229136	H-ZLAF53B	P	N-LASF40	P	S-LAH60V	P	MP-NBFD10-20	P
1.83481049	42.727483	H-ZLAF55D	P	-	-	S-LAH55VS	P	TAFD5F	S
1.84666598	23.787324	H-ZF52	P	SF57HTULTRA	P	S-TIH53W	P	FDS90	S
1.85013636	30.060435	H-ZLAF76	S	-	-	S-NBH57	P	-	-
1.85026018	32.307713	H-ZLAF71	S	N-LASF9HT	P	S-LAH71	P	-	-
1.85544876	36.59805	H-ZLAF3	S	-	-	-	-	-	-
1.88300144	39.225276	H-ZLAF68N	S	-	-	-	-	-	-
1.8830035	40.806875	H-ZLAF68B	S	N-LASF31A	P	S-LAH58	P	TAFD30	P
1.90069597	37.053564	H-ZLAF78B	S	-	-	S-LAH92	P	-
1.90366311	31.419748	H-ZLAF75B	P	N-LASF46B	P	S-LAH95	P	TAFD25	P
1.91082581	35.255728	H-ZLAF4LA	S	-	-	-	-	TAFD35	P
1.92286571	20.882149	H-ZF62	S	N-SF66	P	-	-	E-FDS1	S
1.92286714	18.895456	H-ZF72A	S	-	-	S-NPH2	P	-	-
1.94595843	17.943914	H-ZF88	S	-	-	-	-	FDS18	S
1.95374938	32.318108	H-ZLAF89L	S	-	-	-	-	TAFD45	P
2.00068948	25.435062	H-ZLAF90	S	-	-	-	-	TAFD40	P
2.00330733	28.31737	H-ZLAF92	S	-	-	S-LAH79	P	-	-
