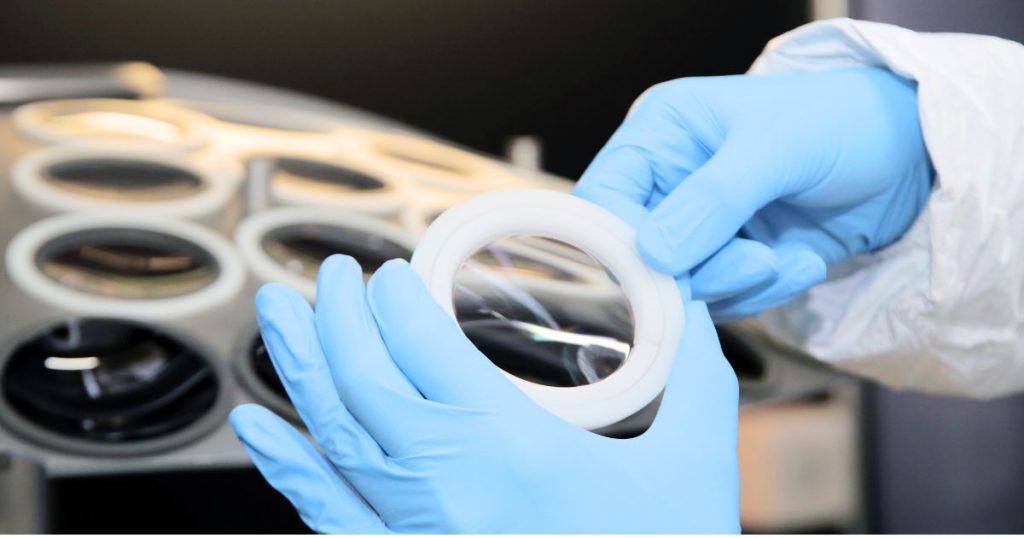

Optical Coating

We are also able to do various coating for your lenses to meet your technical needs.

Module Assembly

Manufacturing Capabilities - Module Assembly

The lenses are assembled into modules for actual applications.

QA & QC

Manufacturing Capabilities - QA & QC

We always inspect our products to ensure consistent quality. See our metrology.

System Prototype

Manufacturing Capabilities - System Prototype

Not limited to module assembly, we also prototype systems.

System Integration

Manufacturing Capabilities - System Integration

From raw materials to system integration, we provide a total solution for your photonics need.

Manufacturing Capabilities

We are able to produce the best diamond turned optics thanks to our 2 decades of experience and our sophisticated diamond turning technologies.

Tolerance

Standard

Precision

High Precision

Materials

Crystal: ZnSe, ZnS, Ge, GaAs, CaF2, BaF2, MgF2, Si, Chalcogenide other IR material..etc

Metal: Cu, Aluminium, silver, Nickle Plated Mirrors..etc

Plastic: PMMA, Acrylic, Zeonex..etc

Shapes/Geometries

Spherical Surfaces, Aspheric Surfaces, Aspheric Hybrid Surfaces, Cylindrical Lenses, Planar Surfaces, Off-Axis Parabolas, Off-Axis Ellipses, Off-Axis Toroids

Diameter (Off-Axis)

10mm – 250mm

10mm – 250mm

10mm – 250mm

Diameter (On-Axis)

5mm – 250mm

5mm – 250mm

5mm – 250mm

RMS Surface Roughness
(For Metals)

15nm

10nm

< 3nm

RMS Surface Roughness
(For Crystal & Plastic)

< 15nm

< 7nm

< 3nm

Reflected Wavefront Error
(P-V @ 632nm)

λ

λ/2

λ/8

Surface Quality

80-50

60-40

40-20

Coating

Uncoated, Al, UV Enhanced Al, Gold, Silver, Anti-Reflection, Custom coating

Laser Optics - Optical Lens - Glass Focusing Lens

Tolerance

Standard

Precision

High Precision

Materials

Glass: BK7, Optical Glass, Fused Silica, Fluoride

Crystal: ZnSe, ZnS, Ge, GaAs, CaF2, BaF2, MgF2, Si, Sapphire, Chalcogenide

Metal: Cu, Al, Mo

Plastic: PMMA, Acrylic

Diameter

Minimum: 4 mm, Maximum: 500 mm

Types

Plano-Convex Lens, Plano-Concave Lens, Meniscus Lens, Bi-Convex Lens, Bi-Concave Lens, Cementing Lens, Ball Lens

Diameter

±0.1mm

±0.025mm

±0.01mm

Thickness

±0.1mm

±0.05mm

±0.01mm

Sag

±0.05mm

±0.025mm

±0.01mm

Clear Aperture

80%

90%

95%

Radius

±0.3%

±0.1%

0.01%

Power

3.0λ

1.5λ

λ/2

Irregularity (P-V)

1.0λ

λ/4

λ/10

Centering

3arcmin

1arcmin

0.5arcmin

Surface Quality

80-50

40-20

10-5

Focusing Lens - Glass Aspheric Lens

Tolerance

Standard

Precision

High Precision

Materials

Glass: BK7, Fused Silica, Fluoride

Crystal: ZnSe, ZnS, Ge, GaAs, CaF2, BaF2, MgF2, Si, Chalcogenide

Metal: Cu, Al

Plastic: PMMA, Acrylic

Diameter

Minimum: 10mm, Maximum: 200 mm

Diameter

±0.1mm

±0.025mm

±0.01mm

Center Thickness

±0.1mm

±0.05mm

±0.01mm

Sag

±0.05mm

±0.025mm

±0.01mm

Max Sag Measurable

25 mm Max

25 mm Max

25 mm Max

Aspheric Irregularity (P-V)

3µm

1µm

<0.06µm

Radius

±0.3%

±0.1%

0.01%

Centering

3arcmin

1arcmin

0.5arcmin

RMS Surface Roughness

20 A°

5 A°

2.5 A°

Surface Quality

80-50

40-20

10-5

CO2-Laser-Optics-Cylindrical-Lens

Tolerance

Standard

Precision

High Precision

Materials

Glass: BK7, Fused Silica

Crystal: ZnSe, ZnS, Ge, CaF2, BaF2, MgF2

Metal: Cu, Al

Plastic: PMMA, Acrylic

Diameter

Minimum: 10 mm, Maximum: 200 mm

Types

Circular, Rectangular

Diameter, Length & Width

±0.1mm

±0.025mm

±0.01mm

Center Thickness

±0.25mm

±0.1mm

±0.025mm

Clear Aperture

85%

90%

95%

Cylindrical Radius

5 fringes

3 fringes

0.5 fringes

Centration

< 5arcmin

< 3arcmin

< 1arcmin

Surface Quality

60-40

20-10

10-5

RMS Surface Roughness

20A°

5A°

2.5A°

Cylindrical Surface Figure X Directions (P-V)

λ per cm

λ per cm

λ /2 per cm

Cylindrical Surface Figure Y Directions (P-V)

λ

λ

λ/2

Surface Flatness (P-V)

λ/2

λ/4

λ/10

CO2-Laser-Optics-Axicon-Lens

Tolerance

Standard

Precision

High Precision

Materials

Glass: BK7, Fused Silica

Crystal: ZnSe, ZnS, Ge

Metal: Cu, Al

Plastic: PMMA, Acrylic

Diameter

Minimum: 10mm, Maximum: 100 mm

Diameter

±0.1mm

±0.025mm

±0.02mm

Clear Aperture

80%

90%

90%

Irregularity (P-V)

1.0λ

λ/2

λ/4

Surface Quality

80-50

40-20

20-10

Polarization Optics Beam Splitter

Tolerance

Standard

Precision

High Precision

Materials

Glass: Borosilicate Glass (BK7), Optical Glass, Fused Silica

Dimensions

Minimum: 5 mm, Maximum: 80 mm

Types

Non-Polarizing Beamsplitter, Polarizing Beamsplitter

Dimension

±0.15mm

±0.08mm

±0.04mm

Wavelength Range

400-1600nm

400-1600nm

350-1600nm

Beam Deviation

±5arcmin

±3arcmin

±0.5arcmin

T/R Splitting Ratio (Non-Polarizing)

70/30 – 10/90

70/30 – 10/90

70/30 – 10/90

T/R Splitting Ratio

±15%

±10%

±5%

Extinction Ratio (Polarizing)

200:1

500:1

> 1000:1

Irregularity

1.0λ

λ/4

λ/10

Surface Quality

80-50

40-20

10-5

Laser Optics Optical Mirror Narrowband Mirror

Tolerance

Standard

Precision

High Precision

Substrates

Glass: N-BK7, Fused Silica

Crystal:  ZnSe,  Si

Metal: Cu, Al, Mo

Dimensions

Minimum: 4 mm, Maximum: 200 mm

Shapes/Geometries

Elliptical, Flat, Spherical, Parabolic

Dimension

±0.25mm

±0.1mm

±0.05mm

Thickness

±0.1mm

±0.05mm

±0.01mm

Wavelength Range

350nm-20μm

350nm-20μm

350nm-20μm

Flatness

λ/4

λ/10

Reflectivity

85%

90%

99.9%

Coating Options

Metallic, Broadband Dielectric, Narrowband Dielectric,

Surface Quality

80-50

40-20

10-5

CO2-Laser-Optics-ZnSe-Window

Tolerance

Standard

Precision

High Precision

Materials

Glass: Borosilicate Glass (BK7), Optical Glass, Fused Silica, Fluoride

Crystal: ZnSe, ZnS, Ge, GaAs, CaF2, BaF2, MgF2, Si, Fluoride, Sapphire, Chalcogenide

Plastic: PMMA, Acrylic

Dimension

Minimum: 4 mm, Maximum: 200 mm

Dimension

±0.25mm

±0.1mm

±0.05mm

Thickness

±0.1mm

±0.05mm

±0.01mm

Clear Aperture

80%

90%

95%

Irregularity (P-V)

λ/4

λ/10

Parallelism

5arcmin

1arcmin

5arcsec

Wavelength Range

200nm-14μm

200nm-14μm

190nm-14μm

Surface Quality

80-50

40-20

10-5

Coating

Broadband Anti-Reflection, Narrowband Anti-Reflection

You Want It? We Make It!

We are able to turn your optical design and drawing into a product in just 2 weeks, subject to material stock availability.

We are able to turn your optical design and drawing into a product in just 2 weeks, subject to material stock availability.

Production & Metrology

Our manufacturing is of world-class standard thanks to our vast experiences and state-of-the-art facilities:

  • Aspheric Processing Machine
  • Automatic Assembly Machine
  • Coating Machine
  • CNC Polishing Machine
  • Diamond Turning Machine
  • Glue Dispenser
  • Milling Machine
  • Molding Machine
  • Punching Machine
  • UV Curing Machine
  • Atomic Force Microscope
  • Eccentric
  • Form Tracer Machine
  • Interferometer
  • Spectrophotometer
  • MTF System
  • Profilometer
  • Temeprature Test Chamber

Optoelectronic & Mechanical Customization

Optoelectronic Customisation and Mechanical Customisation

Our technology centre in Singapore boosts in-house development capability to provide customized solutions based on customers’ requirements. Wavelength Opto-Electronic R&D team comprises of highly experienced engineers and doctorates with years of experience in optics design, product and system development. We work hand-in-hand to provide a complete solution to your industry and research needs. As a value-added service, we provide after-sales support and a warranty of up to 1 year on the customized project.
