Optics for Additive Manufacturing & 3D Printing Systems

As additive manufacturing and 3D printing technologies continue to revolutionize industries—from aerospace and automotive to healthcare and electronics—the role of precision optics has become more critical than ever. At Wavelength Opto-Electronic, we engineer and supply advanced optical components that are integral to the performance, precision, and reliability of modern 3D printing systems.

1. The Role of Optics for Additive Manufacturing

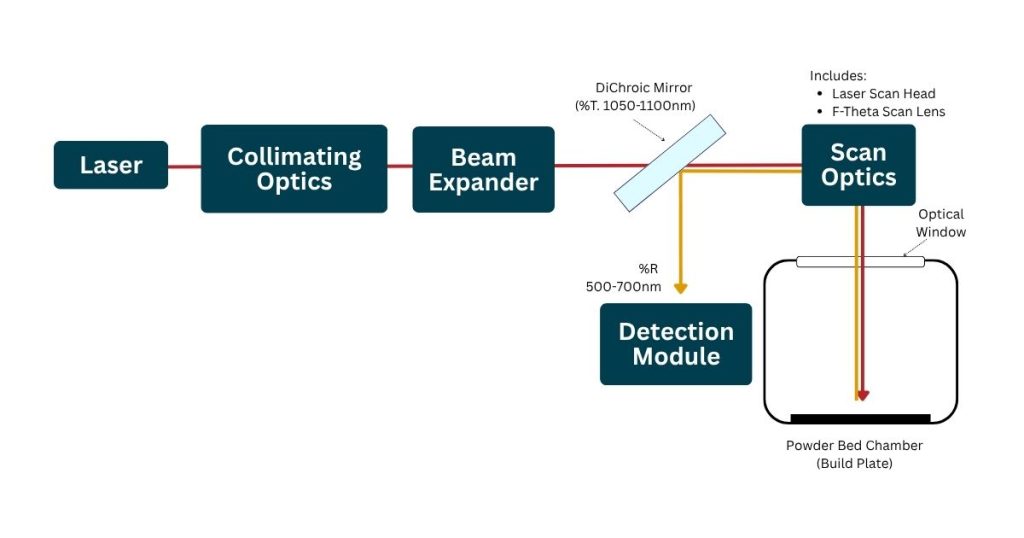

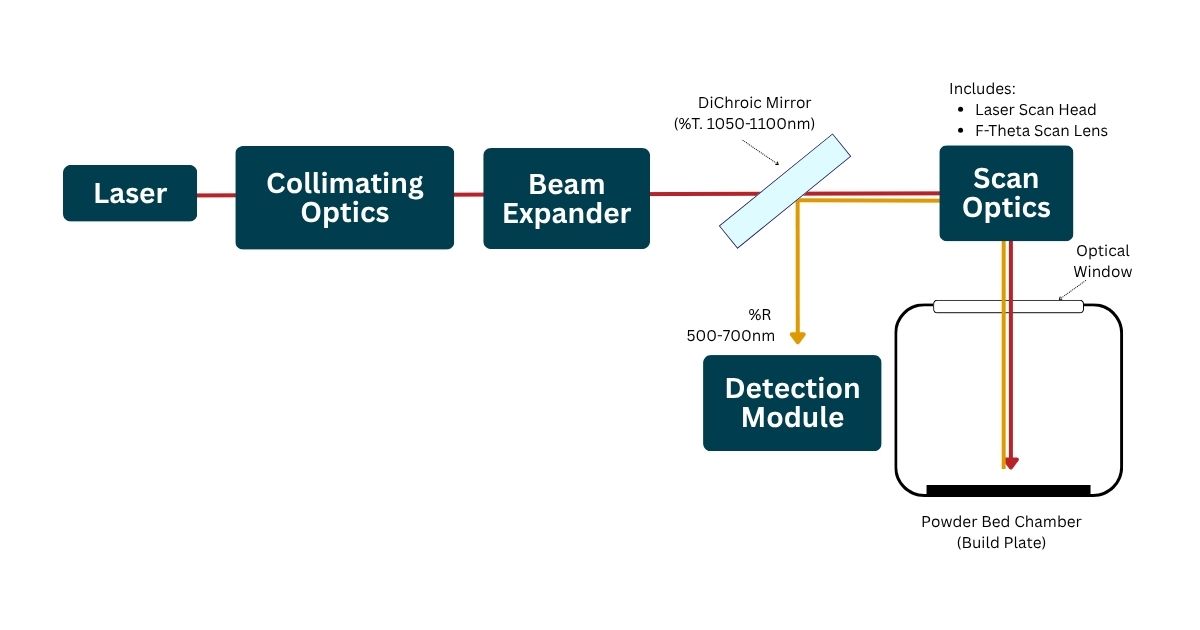

Optics for Additive Manufacturing & 3D Printing Systems 1

Laser-based 3D printing techniques such as Selective Laser Sintering (SLS), Selective Laser Melting (SLM), Stereolithography (SLA), and Direct Energy Deposition (DED) rely extensively on advanced optical systems to ensure high precision, repeatability, and efficiency in the manufacturing process. Optics play a vital role in several key areas of these systems:

1.1 Laser Beam Delivery and Control

Optical components such as mirrors, beam steering units, and fiber collimators are used to transport the laser beam from its source to the build area with minimal loss and high alignment accuracy. The stability and consistency of beam delivery directly affect the build quality.

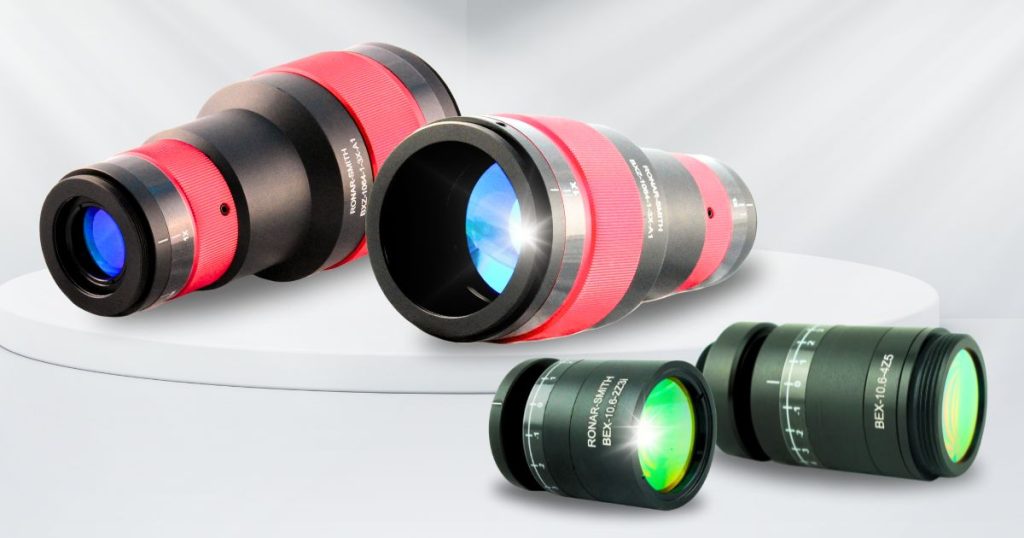

1.2 Beam Shaping and Expansion

Beam expanders and beam shapers condition the laser beam into the desired diameter and intensity profile, which is essential for optimizing energy distribution. This ensures uniform interaction with the material surface, reducing the risk of defects.

1.3 Precise Scanning and Focusing

F-Theta scan lenses, galvanometer scan heads, and focusing optics enable fast and precise positioning of the laser spot over the powder bed or resin vat. These optics ensure that the laser is tightly focused at the correct working distance for effective sintering, melting, or polymerization.

1.4 Thermal Energy Management

Optics also contribute to managing the thermal characteristics of the process. Laser attenuators and modulators control the power output and exposure time, minimizing thermal distortion and enhancing dimensional accuracy.

1.5. Real-Time Process Monitoring

Imaging lenses, thermal cameras, and optical sensors are integrated into the system to monitor the melt pool, temperature distribution, and part geometry in real time. This feedback loop allows for immediate corrections and quality assurance during the build.

2. Key Optical Components in 3D Printing Systems

Optical components are the backbone of precision and reliability in laser-based additive manufacturing. From guiding and shaping the laser beam to protecting sensitive equipment, each optical element plays a specific and critical role in ensuring build quality, repeatability, and system uptime.

2.1 F-Theta Scan Lenses

Optics for Additive Manufacturing & 3D Printing Systems - F-Theta Scan Lenses

F-Theta lenses are designed to focus the laser beam onto a flat plane, maintaining uniform spot size and focal position across the entire scan field. This is especially important in SLS and SLA systems, where precision and consistency across the build platform are paramount. At Wavelength Opto-Electronic, our F-Theta lenses are engineered for a wide range of laser sources, including CO₂, fiber, and UV lasers. These lenses feature low-distortion designs, high laser damage thresholds, and are optimized for high throughput and long service life.

Product Type	Part Number	Wavelength (nm)	EFL (mm)	Scan Field (mm x mm)	Input Beam Dia (1/e²) (mm)	F-Theta (Standard or Telecentric)	Material	Mounting Thread	WD (mm)
Scan Lens *NEW*	SL-9.36-35-80-D27	9360	80	35 x 35	27	Standard	ZnSe	M85x1	95.2
Telecentric Scan Lens *NEW*	TSL-266-65-140Q-D10	266	140	65 x 65	10	Telecentric	Fused Silica	M79x1	203.5
Telecentric Scan Lens *NEW*	TSL-266-70-160Q-D10	266	160	70 x 70	10	Telecentric	Fused Silica	M79x1	244.7
Telecentric Scan Lens *NEW*	TSL-355-63-140Q-D12	355	140	63 x 63	12	Telecentric	Fused Silica	M65x1	193.0
Scan Lens *NEW*	SL-532-220-350Q-D16	532	350	220 x 220	16	Standard	Fused Silica	M79x1	195.5
Scan Lens *NEW*	SL-532-320-480Q-D14	532	480	320 x 320	14	Standard	Fused Silica	M79x1	583.7
Scan Lens *NEW*	SL-532-400-655Q-D20	532	655	400 x 400	20	Standard	Fused Silica	M85x1	578.8
Scan Lens *NEW*	SL-532-410-650Q-D20	532	650	410 x 410	20	Standard	Fused Silica	M85x1	570
Scan Lens *NEW*	SL-532-400-600Q-D14	532	600	400 x 400	14	Standard	Fused Silica	M79x1	706.5
Scan Lens *NEW*	SL-1064-80-240Q-D15	1064	240	80 x 80	15	Standard	Fused Silica	M39x1	133.5
Telecentric Scan Lens	TSL-1064-50-100Q-D15	1030-1090	100	50 x 50	15	Telecentric	Fused Silica	M85x1	131.0
Telecentric Scan Lens	TSL-1320-15-55-D20-V1	1320	55	15 x 15	20	Telecentric	Optical Glass	Flange	46.7
Scan Lens	SL-1064-120-254Q-D30-WC	1064	254	120 x 120	30	Standard	Fused Silica	M102x1	307.2
Scan Lens	SL-1064-215-340Q-D16	1064	340	215 x 215	16	Standard	Fused Silica	M85x1	275.0
Scan Lens	SL-1064-220-350Q-D14	1064	350	220 x 220	14	Standard	Fused Silica	M79x1	427.3
Scan Lens	SL-1064-215-340Q-D15	1064	340	215 x 215	15	Standard	Fused Silica	M85x1	275.0
Telecentric Scan Lens	TSL-532-190-330Q-D14	532	330	190 x 190	14	Telecentric	Fused Silica	M85x1	490.6
CO₂ Doublet Scan Lens	SL-10.6-110-150ZR	10600	150	105 x 105	14	Standard	ZnSe	M85x1	161.7
Scan Lens	SL-257.5-280-450Q-D14	257.5	450	280 x 280	14	Standard	Fused Silica	M85x1	537.9
Scan Lens	SL-266-70-100Q	266	100	70 x 70	5	Standard	Fused Silica	M85x1	132
Scan Lens	SL-266-100-160Q	266	162.3	100 x 100	5	Standard	Fused Silica	M85x1	198.8
Scan Lens	SL-266-150-250Q	266	250	150 x 150	4	Standard	Fused Silica	M55x1	298.4
Scan Lens	SL-355-50-100-D10-LP	343-355	100	50 x 50	10	Standard	Optical Glass	M85x1	130
Scan Lens	SL-355-60-100Q	343-355	100	60 x 60	6	Standard	Fused Silica	M85x1	136.9
Scan Lens	SL-355-70-180Q-D12	343-355	180	70 x 70	12	Standard	Fused Silica	M85x1	141.9
Scan Lens	SL-355-76-108Q	343-355	108	76 x 76	6	Standard	Fused Silica	M85x1	137
Scan Lens	SL-355-85-160Q	343-355	160	85 x 85	10	Standard	Fused Silica	M85x1	216.2
Scan Lens	SL-355-100-160Q	343-355	160	100 x 100	7	Standard	Fused Silica	M85x1	197.4
Scan Lens	SL-355-105-170Q	343-355	170	105 x 105	6	Standard	Fused Silica	M85x1	216.1
Scan Lens	SL-355-125-210-D10	343-355	210	125 x 125	10	Standard	Fused Silica	M55x1	260
Scan Lens	SL-355-155-250Q-V1	343-355	250	155 x 155	10	Standard	Fused Silica	M85x1	297.7
Scan Lens	SL-355-160-210Q-D12	343-355	210	160 x 160	12	Standard	Fused Silica	M85x1	247.2
Scan Lens	SL-355-175-254Q	343-355	254	175 x 175	12	Standard	Fused Silica	M79x1/M85x1	304.9
Scan Lens	SL-355-180-295Q	343-355	295	180 x 180	10	Standard	Fused Silica	M85x1	359.6
Scan Lens	SL-355-210-330Q	343-355	330	210 x 210	14	Standard	Fused Silica	M85x1	265.1
Scan Lens	SL-355-250-360Q-D12	343-355	360	250 x 250	12	Standard	Fused Silica	M85x1	418.1
Scan Lens	SL-355-320-580Q-D10	343-355	580	320 x 320	10	Standard	Fused Silica	M85x1	671.5
Scan Lens	SL-355-330-511Q	343-355	511	330 x 330	14	Standard	Fused Silica	M85x1	606
Scan Lens	SL-355-350-580Q	343-355	580	350 x 350	10	Standard	Fused Silica	M85x1	682.8
Scan Lens	SL-355-400-580Q	343-355	580	400 x 400	10	Standard	Fused Silica	M79x1	677.6
Scan Lens	SL-355-400-580Q-D15	343-355	580	400 x 400	15	Standard	Fused Silica	M85x1	652.3
Scan Lens	SL-355-440-830Q	343-355	830	440 x 440	14	Standard	Fused Silica	M85x1	979.1
Scan Lens	SL-355-470-920Q	343-355	919	470 x 470	14	Standard	Fused Silica	M85x1	1035.1
Scan Lens	SL-355-500-815Q	343-355	815	500 x 500	10	Standard	Fused Silica	M85x1	976.4
Scan Lens	SL-355-600-800Q	343-355	800	600 x 600	14	Standard	Fused Silica	M79x1	888.4
Scan Lens	SL-355-600-840Q-D10	343-355	840	600 x 600	10	Standard	Fused Silica	M79x1	931.8
Scan Lens	SL-355-650-935Q-D14	343-355	935	650 x 650	14	Standard	Fused Silica	M79x1	888.5
Scan Lens	SL-355-800-1117Q-D10	343-355	1117	800 x 800	10	Standard	Fused Silica	M79x1	1148.3
Scan Lens	SL-355-1050-1470Q-D10	343-355	1470	1050 x 1050	10	Standard	Fused Silica	M79x1	1300.4
Scan Lens	SL-405-50-100Q-D8	405	100	50 x 50	8	Standard	Fused Silica	M60x1	81.5
Scan Lens	SL-405-110-175Q	405	175	110 x 110	6	Standard	Fused Silica	M55x1	209.4
Scan Lens	SL-405-140-210Q	405	210	140 x 140	10	Standard	Fused Silica	M55x1	162.8
Scan Lens	SL-405-160-210Q	405	210	160 x 160	7	Standard	Fused Silica	M55x1	264.5
Scan Lens	SL-405-327-570Q	405	570	327 x 327	10	Standard	Fused Silica	M85x1	687.9
Scan Lens	SL-405-380-650Q	405	650	380 x 380	17	Standard	Fused Silica	M85x1	738.1
Scan Lens	SL-405-600-800Q-D14	405	800	600 x 600	14	Standard	Fused Silica	M79x1	913.4
Scan Lens	SL-405-620-1050-D13	405	1050	620 x 620	13	Standard	Optical Glass	M85x1	935.8
Scan Lens	SL-450-8-60-D20	450	80	8 x 8	20	Standard	Optical Glass	M55x1	87.7
Scan Lens	SL-450-40-100Q-D30	450	100	40 x 40	30	Standard	Fused Silica	M95x1	68.8
Scan Lens	SL-450-50-100Q-D8	450	101.5	50 x 50	8	Standard	Fused Silica	M60x1	81.5
Scan Lens	SL-450-80-240-D30	450	240	80 x 80	30	Standard	Optical Glass	M85x1	315.4
Scan Lens	SL-450-115-240-D20	450	240	115 x 115	20	Standard	Optical Glass	M85x1	315.4
Scan Lens	SL-450-115-339Q-D30	420-480	339	115 x 115	30	Standard	Fused Silica	M85x1	459.9
Water Cool Scan Lens	SL-450-130-280Q-D30-WC	450	280	130 x 130	30	Standard	Fused Silica	M112x1	361.8
Scan Lens	SL-450-180-339Q-D20	420-480	339	180 x 180	20	Standard	Fused Silica	M85x1	459.9
Scan Lens	SL-532-58-90	532	90	58 x 58	6	Standard	Optical Glass	M85x1	96.5
scan Lens	SL-532-70-100	532	100	70 x 70	10	Standard	Optical Glass	M85x1	99
Scan Lens	SL-532-74-113Q	515-545	113	74 x 74	6	Standard	Fused Silica	M85x1	140.5
Scan Lens	SL-532-90-163Q	515-545	163	90 x 90	10	Standard	Fused Silica	M85x1	204.6
Scan Lens	SL-532-110-170Q	515-545	170	110 x 110	10	Standard	Fused Silica	M85x1	216.7
Scan Lens	SL-532-115-165	532	165	115 x 115	10	Standard	Optical Glass	M85x1	183.5
Scan Lens	SL-532-115-165Q	515-545	165	115 x 115	10	Standard	Fused Silica	M85x1	220.7
Scan Lens	SL-532-115-170	532	170	115 x 115	14	Standard	Optical Glass	M85x1	195.4
Scan Lens	SL-532-135-200	532	200	135 x 135	20	Standard	Optical Glass	M85x1	230.8
Scan Lens	SL-532-150-254	532	254	150 x 150	10	Standard	Optical Glass	M85x1	280
Scan Lens	SL-532-155-250-D20	532	250	155 x 155	20	Standard	Optical Glass	M85x1	288.9
Scan Lens	SL-532-165-260Q	515-545	260	165 x 165	10	Standard	Fused Silica	M85x1	338.4
Scan Lens	SL-532-180-254	532	254	180 x 180	10	Standard	Optical Glass	M85x1	303
Scan Lens	SL-532-185-255Q-D10	515-545	255	185 x 185	10	Standard	Fused Silica	M85x1	317.8
Scan Lens	SL-532-205-330Q	515-545	330	205 x 205	14	Standard	Fused Silica	M85x1	389.5
Scan Lens	SL-532-210-420Q-D20	515-545	420.5	210 x 210	20	Standard	Fused Silica	M85x1	517.9
Scan Lens	SL-532-212-348Q-D14	515-545	348	212 x 212	14	Standard	Fused Silica	M85x1	276.1
Scan Lens	SL-532-225-410	532	410	225 x 225	14	Standard	Optical Glass	M85x1	445.5
Scan Lens	SL-532-297-420	532	420	297 x 297	15	Standard	Optical Glass	M85x1	477.7
Scan Lens	SL-532-335-520	532	520	335 x 335	16	Standard	Optical Glass	M85x1	599.2
Scan Lens	SL-532-365-615Q	515-545	615	365 x 365	10	Standard	Fused Silica	M85x1	707
Scan Lens	SL-532-500-750	532	750	500 x 500	16	Standard	Optical Glass	M85x1	911.2
Scan Lens	SL-532-500-815Q	515-545	815	500 x 500	10	Standard	Fused Silica	M85x1	936.7
Scan Lens	SL-915-175-254	915	254	175 x 175	16	Standard	Optical Glass	M85x1	285.4
Scan Lens	SL-915-300-420-D20	915	420	300 x 300	20	Standard	Optical Glass	M85x1	467.8
Scan Lens	SL-915-340-500Q-D20	915	500	340 x 340	20	Standard	Fused Silica	M85x1	594.9
Scan Lens	SL-915-600-970Q-D10	915	970	600 x 600	10	Standard	Fused Silica	M85x1	1052.3
Scan Lens	SL-980-53-98	980	98	53 x 53	10	Standard	Optical Glass	M85x1	114.8
Scan Lens	SL-980-70-100	980	100	70 x 70	14	Standard	Optical Glass	M85x1	98
Scan Lens	SL-980-90-201-D30	980	201	90 x 90	30	Standard	Optical Glass	M85x1	241.4
Scan Lens	SL-980-103-162-D20	980	162	103 x 103	20	Standard	Optical Glass	M85x1	187.4
Scan Lens	SL-980-107-163	980	163	107 x 107	12	Standard	Optical Glass	M85x1	179.7
Scan Lens	SL-980-109-160	980	160	109 x 109	12	Standard	Optical Glass	M85x1	186.1
Scan Lens	SL-980-130-210-D30	980	210	130 x 130	30	Standard	Optical Glass	M112x1	255.8
Scan Lens	SL-980-160-260Q-D20	980	260	160 x 160	20	Standard	Fused Silica	M85x1	318.4
Scan Lens	SL-980-170-250-D30	980	250	170 x 170	30	Standard	Optical Glass	M160x1	290
Scan Lens	SL-980-209-400-D20	980	400	209 x 209	20	Standard	Optical Glass	M85x1	485.9
Scan Lens	SL-980-215-340Q-D20	980	340	215 x 215	20	Standard	Fused Silica	M85x1	119.6
Scan Lens	SL-980-250-410-D30	980	410	250 x 250	30	Standard	Optical Glass	M98x1	468
Scan Lens	SL-980-280-420-D20	980	420	280 x 280	20	Standard	Optical Glass	M85x1	465.3
Scan Lens	SL-980-280-420Q	980	420	280 x 280	14	Standard	Fused Silica	M85x1	497.3
Scan Lens	SL-980-340-500Q-D20	980	498.4	340 x 340	20	Standard	Fused Silica	M85x1	568.7
Scan Lens	SL-980-400-635-D30	980	635	400 x 400	30	Standard	Optical Glass	M120x1	734
Scan Lens	SL-980-410-647Q-D20	980	647	410 x 410	20	Standard	Fused Silica	M85x1	559.4
Scan Lens	SL-980-450-650Q-D30	980	650	450 x 450	30	Standard	Fused Silica	M123x1	784.9
Scan Lens	SL-980-450-812-D30	980	812	450 x 450	30	Standard	Optical Glass	M112x1	897.2
Scan Lens	SL-980-950-1710Q-D30	980/950	1710	950 x 950	30	Standard	Fused Silica	M100x1	1833.5
Scan Lens	SL-1064-16-100Q	1064	100	16 x 16	14	Standard	Fused Silica	M55x1	99.5
Scan Lens	SL-1064-26-160Q	1064	160	26 x 26	14	Standard	Fused Silica	M55x1	166.5
Scan Lens	SL-1064-45-80	1064	80	45 x 45	10	Standard	Optical Glass	M55x1	91.4
Scan Lens	SL-1064-50-100Q-D10	1030-1080	100	50 x 50	10	Standard	Fused Silica	M55x1/M85x1	124.9
Laser Cleaning Scan Lens	SL-1064-50-100Q-D10-LC	1064	100	50	10	Standard	Fused Silica	Flange	120.7
Scan Lens	SL-1064-51-100-D20	1064	100	51 x 51	20	Standard	Optical Glass	M85x1	115.8
Scan Lens	Sl-1064-60-250Q	1064	250	60 x 60	14	Standard	Fused Silica	M55x1	263.7
Scan Lens	SL-1064-66-125Q-D14	1030-1080	125	66 x 66	14	Standard	Fused Silica	M58x1	58.4
Scan Lens	SL-1064-70-100	1064	100	70 x 70	10	Standard	Optical Glass	M85x1	98.8
Scan Lens	SL-1064-70-100Q	1030-1080	100	70 x 70	10	Standard	Fused Silica	M85x1	123.4
Scan Lens	SL-1064-70-160-D30	1064	160	70 x 70	30	Standard	Optical Glass	M100x1	172.3
Scan Lens	SL-1064-80-125	1064	125	80 x 80	15	Standard	Optical Glass	M85x1	152.6
Scan Lens	SL-1064-80-300Q	1064	300	80 x 80	14	Standard	Fused Silica	M55x1	318.4
Scan Lens	SL-1064-94-163Q	1030-1080	163	94 x 94	20	Standard	Fused Silica	M85x1	204.8
Scan Lens	SL-1064-100-160-D20	1064	160	100 x 100	20	Standard	Optical Glass	M85x1	187.9
Scan Lens	SL-1064-100-165-D25	1064	165	100 x 100	25	Standard	Optical Glass	M85x1	197.1
Laser Cleaning Scan Lens	SL-1064-100-170Q-D10-LC	1064	170	100	10	Standard	Fused Silica	Flange	210.7
Scan Lens	SL-1064-100-254-D30	1064	254	100 x 100	30	Standard	Optical Glass	M85x1	303.3
Water Cool Scan Lens	SL-1064-100-254Q-D30-WC	1030-1080	254	100 x 100	30	Standard	Fused Silica	M120x1	344.5
Laser Cleaning Scan Lens	SL-1064-100x10-170Q-D10-LC	1064	170	100 x 10	10	Standard	Fused Silica	Flange	120.7
Laser Cleaning Scan Lens	SL-1064-100x10-170Q-D20-LC	1064	170	100 x 10	20	Standard	Fused Silica	Flange	222.7
Scan Lens	SL-1064-104-160A	1064	160	104 x 104	10	Standard	Optical Glass	M85x1	181.4
Scan Lens	SL-1064-107-163	1064	163	107 x 107	12	Standard	Optical Glass	M85x1	180.6
Scan Lens	SL-1064-110-F160B	1064	160	110 x 110	12	Standard	Optical Glass	M85x1	183
Scan Lens	SL-1064-111-163Q	1030-1080	163	111 x 111	9.5	Standard	Fused Silica	M79x1	90.1
Scan Lens	SL-1064-112-163	1064	163	112 x 112	10	Standard	Optical Glass	M85x1	184.9
Scan Lens	SL-1064-112-163Q	1030-1080	163	112 x 112	10	Standard	Fused Silica	M79x1/M85x1	203.7
Scan Lens	SL-1064-115-163	1064	163	115 x 115	10	Standard	Optical Glass	M76x1	192.3
Scan Lens	SL-1064-115-255Q-D20	1030-1080	255	115 x 115	20	Standard	Fused Silica	M85x1	328.4
Scan Lens	SL-1064-120-170	1064	170	120 x 120	14	Standard	Optical Glass	M85x1	195.8
Scan Lens	SL-1064-140-210	1064	210	140 x 140	14	Standard	Optical Glass	M85x1	238.4
Laser Cleaning Scan Lens	SL-1064-140-210Q-D10-LC	1064	210	140	10	Standard	Fused Silica	Flange	258.5
Scan Lens	SL-1064-142-277Q	1030-1080	277	142 x 142	15	Standard	Fused Silica	M85x1	347.5
Water Cool Scan Lens	SL-1064-150-306Q-D30-WC	1064	306	150 x 150	30	Standard	Fused Silica	M85x1	374
Scan Lens	SL-1064-160-210	1064	210	160 x 160	10	Standard	Optical Glass	M85x1	246.2
Water Cool Scan Lens	SL-1064-160-330Q-D30-WC	1030-1080	330	160 x 160	30	Standard	Fused Silica	M120x1	433.8
Scan Lens	SL-1064-170-255Q-D20	1030-1080	255	170 x 170	20	Standard	Fused Silica	M85x1	319.4
Scan Lens	SL-1064-170-260Q-D14	1064	260	170 x 170	14	Standard	Fused Silica	M79x1	308.5
Scan Lens	SL-1064-170-350Q-D30	1030-1080	350	170 x 170	30	Standard	Fused Silica	M120x1	292.2
Scan Lens	SL-1064-174-254G-V1	1064	254	174 x 174	10	Standard	Optical Glass	M85x1	302.1
Scan Lens	SL-1064-175-254	1064	254	175 x 175	12	Standard	Optical Glass	M85x1	288.9
Scan Lens	SL-1064-175-254Q	1030-1080	254	160 x 160	10	Standard	Fused Silica	M85x1	304
Scan Lens	SL-1064-177-254Q	1030-1080	254	177 x 177	9.5	Standard	Fused Silica	M79x1	211
Scan Lens	SL-1064-180-254	1064	254	180 x 180	20	Standard	Optical Glass	M85x1	295
Scan Lens	SL-1064-180-260	1064	260	180 x 180	10	Standard	Optical Glass	M85x1	304.7
Scan Lens	SL-1064-180-270-D8	1064	270	180 x 180	8	Standard	Optical Glass	M55x1	299.1
Water Cool Scan Lens	SL-1064-180-400Q-D30-WC	1030-1080	400	180 x 180	30	Standard	Fused Silica	M120x1	532.2
Scan Lens	SL-1064-200-310-D25	1064	310	200 x 200	25	Standard	Optical Glass	M85x1	352.3
Water Cool Scan Lens	SL-1064-200-420Q-D30-WC	1030-1080	420	200 x 200	30	Standard	Fused Silica	M120x1	540.4
Scan Lens	SL-1064-200-460Q-D30	1030-1080	460	200 x 200	30	Standard	Fused Silica	M98x1	572.8
Scan Lens	SL-1064-205-330	1064	330	210 x 210	14	Standard	Optical Glass	M85x1	385.1
Water Cool Scan Lens	SL-1064-210-400Q-D30-WC	1030-1080	400	210 x 210	30	Standard	Fused Silica	M120x1	531.4
Scan Lens	SL-1064-215-340Q-D20	1030-1080	340	215 x 215	20	Standard	Fused Silica	M85x1	203.8
Scan Lens	SL-1064-220-350Q-D10	1030-1080	350	220 x 220	10	Standard	Fused Silica	M85x1	408
Scan Lens	SL-1064-250-350-D20	1064	350	250 x 250	20	Standard	Optical Glass	M85x1	386.8
Water Cool Scan Lens	SL-1064-270-610Q-D30-WC	1030-1080	610	270 x 270	30	Standard	Fused Silica	M120x1	759.4
Scan Lens	SL-1064-280-420Q	1030-1080	420	280 x 280	14	Standard	Fused Silica	M85x1	506.3
Scan Lens	SL-1064-280-500Q-D30	1030-1080	500	280 x 280	30	Standard	Fused Silica	M120x1	618.3
Scan Lens	SL-1064-300-420	1064	419.8	300 x 300	14	Standard	Optical Glass	M85x1	492
Scan Lens	SL-1064-305-338	1064	338	305 x 305	15	Standard	Optical Glass	M85x1	362.8
Scan Lens	SL-1064-320-350-D15	1064	350	320 x 320	15	Standard	Optical Glass	M85x1	396.1
Scan Lens	SL-1064-320-420-D30	1064	420	320 x 320	30	Standard	Optical Glass	M150x1	391.8
Scan Lens	SL-1064-320-450Q	1030-1080	450	320 x 320	14	Standard	Fused Silica	M85x1	515.9
Scan Lens	SL-1064-330-580	1064	580	330 x 330	10	Standard	Optical Glass	M85x1	709.5
Scan Lens	SL-1064-340-520Q	1064	520	340 x 340	20	Standard	Fused Silica	M85x1	446
Scan Lens	SL-1064-350-640Q	1030-1080	640	350 x 350	10	Standard	Fused Silica	M85x1	706.9
Scan Lens	SL-1064-356-500	1064	500	356 x 356	14	Standard	Optical Glass	M95x2	543.4
Scan Lens	SL-1064-400-525	1064	525	400 x 400	10	Standard	Optical Glass	M85x1	597.2
Scan Lens	SL-1064-450-670Q-D15	1030-1080	670	450 x 450	15	Standard	Fused Silica	M85x1	753.4
Scan Lens	SL-1064-500-779-D10	1064	779	500 x 500	10	Standard	Optical Glass	M79x1	829.1
Scan Lens	SL-1064-500-780Q-D15	1030-1080	780	500 x 500	15	Standard	Fused Silica	M85x1	892.4
Scan Lens	SL-1064-500-815	1064	815	500 x 500	24	Standard	Optical Glass	M85x1	962
Scan Lens	SL-1064-630-815Q-D15	1064	815	630 x 630	15	Standard	Fused Silica	M85x1	939
Water Cool Scan Lens	SL-1064-755-1400Q-D30-WC	1030-1080	1400	755 x 755	30	Standard	Fused Silica	M120x1	1677.3
Scan Lens	SL-1064-900-1260Q-D14	1030-1080	1260	900 x 900	14	Standard	Fused Silica	M95 x 2	1388.9
Scan Lens	SL-1064-F254B	1064	254	175 x 175	10	Standard	Optical Glass	M85x1	280
1D Scan Lens	SL-1064-L70-100Q-D30	1064	100	70	30	Standard	Fused Silica	Flange	74.8
1D Scan Lens	SL-1064-L100-150Q-D30	1064	150	100	30	Standard	Fused Silica	Flange	131.6
1D Scan Lens	SL-1064-L110-180Q-D30	1064	180	110	30	Standard	Fused Silica	Flange	209.4
1D Scan Lens	SL-1064-L140-380Q-D8	1064	380	140	8	Standard	Fused Silica	Flange	450
1D Scan Lens	SL-1064-L170-270Q-D30	1064	270	170	30	Standard	Fused Silica	Flange	338.4
1D Scan Lens	SL-1064-L1000-1400Q-D14	1064	1400	1000	14	Standard	Fused Silica	Flange	1571.1
Single Axis Scan Lens	SL-1070-260X26-360Q-D22	1070	360	261 x 26.1	22	Standard	Fused Silica	Flange	471.9
Scan Lens	SL-1550-100-160	1550	160	100 x 100	9	Standard	Optical Glass	M85x1	175.6
Scan Lens	SL-1550-240-420Q	1550	420	240 x 240	10	Standard	Fused Silica	M85x1	503.3
Scan Lens	SL-2000-100-160Q	2000	160	100 x 100	10	Standard	Fused Silica	M55x1	179.6
Scan Lens	SL-2000-175-254Q	2000	254	175 x 175	10	Standard	Fused Silica	M55x1	281.7
Scan Lens	SL-2000-300-420Q	2000	420	300 x 300	10	Standard	Fused Silica	M85x1	517.3
CO₂ Scan Lens	SL1-9.4--F300ZR-48	9400	300	210 x 210	12	Standard	ZnSe	M85x1	283.6
CO₂ Scan Lens	SL1-9.4-F100ZR-48	9400	100	71 x 71	12	Standard	ZnSe	M85x1	84.6
CO₂ Scan Lens	SL1-9.4-F150ZR-48	9400	150	100 x 100	12	Standard	ZnSe	M85x1	130
CO₂ Scan Lens	SL1-9.4-F200ZR-48	9400	200	140 x 140	15	Standard	ZnSe	M85x1	181.2
CO₂ Scan Lens	SL1-9.4-F250ZR-65	9400	250	175 x 175	20	Standard	ZnSe	M85x1	241.1
CO₂ Scan Lens	SL1-9.4-F360ZR-48	9400	360	250 x 250	14	Standard	ZnSe	M85x1	343
CO₂ Scan Lens	SL1-9.4-F435ZR-48	9400	433	274 x 274	14	Standard	ZnSe	M85x1	419.2
CO₂ Scan Lens	SL1-9.4-F450ZR-48	9400	450	330 x 330	14	Standard	ZnSe	M85x1	446.1
CO₂ Scan Lens	SL1-9.4-F480ZR-70	9400	480	350 x 350	20	Standard	ZnSe	M85x1	478.5
CO₂ Scan Lens	SL1-9.4-F573Z-48	9400	573	432 x 432	12	Standard	ZnSe	M85x1	558.9
CO₂ Scan Lens	SL1-10.6-F50ZR-25.4	10600	50	15 x 15	10	Standard	ZnSe	M85x1	30.4
CO₂ Scan Lens	SL1-10.6-F50ZR-35	10600	50	20 x 20	10	Standard	ZnSe	M85x1	32
CO₂ Scan Lens	SL1-10.6-F52ZR-48	10600	52	35 x 35	10	Standard	ZnSe	M85x1	35.4
CO₂ Scan Lens	SL1-10.6-F75ZR-48	10600	75	50 x 50	10	Standard	ZnSe	M85x1	57.8
CO₂ Scan Lens	SL1-10.6-F100ZR-48	10600	100	69 x 69	10	Standard	ZnSe	M85x1	79.6
CO₂ Scan Lens	SL1-10.6-F150ZR-48	10600	150	100 x 100	12	Standard	ZnSe	M85x1	130
CO₂ Scan Lens	SL1-10.6-F200ZR-48	10600	200	140 x 140	15	Standard	ZnSe	M85x1	181.2
CO₂ Scan Lens	SL1-10.6-F200ZR-70	10600	200	145 x 145	20	Standard	ZnSe	M85x1	193.7
CO₂ Scan Lens	SL1-10.6-F250ZR-48	10600	250	170 x 170	14	Standard	ZnSe	M85x1	232.6
CO₂ Scan Lens	SL1-10.6-F250ZR-65	10600	250	175 x 175	20	Standard	ZnSe	M85x1	241.1
CO₂ Scan Lens	SL1-10.6-F300ZR-48	10600	300	213 x 213	12	Standard	ZnSe	M85x1	283.6
CO₂ Scan Lens	SL1-10.6-F360ZR-48	10600	360	250 x 250	14	Standard	ZnSe	M85x1	343
CO₂ Scan Lens	SL1-10.6-F420ZR-70	10600	420	300 x 300	20	Standard	ZnSe	M85x1	403.9
CO₂ Scan Lens	SL1-10.6-F420ZR-75	10600	420	300 x 300	20	Standard	ZnSe	M85x1	404.8
CO₂ Scan Lens	SL1-10.6-F430ZR-65	10600	430	300 x 300	20	Standard	ZnSe	M85x1	432.1
CO₂ Scan Lens	SL1-10.6-F435ZR-48	10600	433	274 x 274	14	Standard	ZnSe	M85x1	419.2
CO₂ Scan Lens	SL1-10.6-F450ZR-48	10600	450	330 x 330	14	Standard	ZnSe	M85x1	446.1
CO₂ Scan Lens	SL1-10.6-F480ZR-48	10600	480	350 x 350	14	Standard	ZnSe	M85x1	464.5
CO₂ Scan Lens	SL1-10.6-F480ZR-70	10600	480	350 x 350	20	Standard	ZnSe	M85x1	478.5
CO₂ Scan Lens	SL1-10.6-F550ZR-60	10600	550	290 x 290	20	Standard	ZnSe	M85x1	559.8
CO₂ Scan Lens	SL1-10.6-F573ZR-48	10600	573	432 x 432	12	Standard	ZnSe	M85x1	558.9
CO₂ Scan Lens	SL1-10.6-F573ZR-62	10600	573	394 x 394	20	Standard	ZnSe	M85x1	569
CO₂ Scan Lens	SL1-10.6-F574ZR-75	10600	574	420 x 420	20	Standard	ZnSe	M85x1	576.6
CO₂ Scan Lens	SL1-10.6-F620ZR-70	10600	620	450 x 450	20	Standard	ZnSe	M85x1	610
CO₂ Scan Lens	SL1-10.6-F720ZR-48	10600	720	521 x 521	12	Standard	ZnSe	M85x1	729.1
CO₂ Scan Lens	SL1-10.6-F720ZR-75	10600	720	560 x 560	20	Standard	ZnSe	M85x1	719.6
CO₂ Scan Lens	SL1-10.6-F740ZR-88	10600	740	540 x 540	20	Standard	ZnSe	M100x1	737.2
CO₂ Scan Lens	SL1-10.6-F830ZR-75	10600	830	600 x 600	20	Standard	ZnSe	M85x1	816.8
CO₂ Scan Lens	SL1-10.6-F977Z-48	10600	977	675 x 675	12	Standard	ZnSe	M85x1	974.8
CO₂ Scan Lens	SL1-10.6-F1100ZR-75	10600	1100	800 x 800	25	Standard	ZnSe	M85x1	1117.1
CO₂ Scan Lens	SL1-10.6-F1150ZR-48	10600	1150	800 x 800	14	Standard	ZnSe	M85x1	1137.4
CO₂ Scan Lens	SL1-10.6-F1191ZR-48	10600	1191.6	770 x 770	12	Standard	ZnSe	M85x1	1196
CO₂ Scan Lens	SL1-10.6-F1650Z-90	10600	1648	1150 x 1150	20	Standard	ZnSe	M120x1	1682.3
CO₂ Scan Lens	SL1-10.6-F1650ZR-48	10600	1650	1150 x 1150	12	Standard	ZnSe	M85x1	1617.4
CO₂ Scan Lens	SL1-10.6-F2122ZR-48	10600	2128	1385 x 1385	12	Standard	ZnSe	M85x1	2153
Laser Cleaning Scan Lens	SL1-1064-F160-50M	1064	160	105 x 105	10	Standard	Optical Glass	M55x1	144.9
Laser Cleaning Scan Lens	SL1-1064-F200-50M	1064	200	130 x 130	10	Standard	Optical Glass	M55x1	188.8
Laser Cleaning Scan Lens	SL1-1064-F250-50M	1064	250	169 x 169	10	Standard	Optical Glass	M55x1	237.7
Laser Cleaning Scan Lens	SL1-1064-F300-50M	1064	300	205 x 205	10	Standard	Optical Glass	M55x1	288.4
Laser Cleaning Scan Lens	SL1-1064-F350-50M	1064	350	240 x 240	10	Standard	Optical Glass	M55x1	343.2
Laser Cleaning Scan Lens	SL1-1064-F500-50M	1064	500	333 x 333	10	Standard	Optical Glass	M55x1	489
CO₂ Doublet Scan Lens	SL2-9.4-50-100Z	9400	100	50 x 50	16	Standard	ZnSe	M85x1	79.9
CO₂ Doublet Scan Lens	SL2-9.4-50-100ZW-D20	9400	100	50 x 50	20	Standard	ZnSe	M85x1	131.3
CO₂ Doublet Scan Lens	SL2-9.4-70-100ZR	9400	100	70 x 70	14	Standard	ZnSe	M85x1	105.6
CO₂ Doublet Scan Lens	SL2-9.4-70-144Z	9400	144	70 x 70	14	Standard	ZnSe	M85x1	161.7
CO₂ Doublet Scan Lens	SL2-9.4-90-165ZW	9400	165	90 x 90	20	Standard	ZnSe	M85x1	188.5
CO₂ Doublet Scan Lens	SL2-9.4-110-170Z-20	9400	170	110 x 110	20	Standard	ZnSe	M85x1	177.1
CO₂ Doublet Scan Lens	SL2-9.4-140-200ZR	9400	200	140 x 140	15	Standard	ZnSe	M85x1	219
CO₂ Doublet Scan Lens	SL2-9.4-F300ZR-D20	9400	300	170 x 170	20	Standard	ZnSe	M85x1	326
CO₂ Doublet Scan Lens	SL2-9.4-F380Z-D30	9400	380	220 x 220	30	Standard	ZnSe	M102x1	425.8
CO₂ Doublet Scan Lens	SL2-9.5-550-790Z-D30	9400	790	550 x 550	30	Standard	ZnSe	M112x1	861.4
CO₂ Doublet Scan Lens	SL2-9.6-120-200Z-D20	9600	198.8	120 x 120	20	Standard	ZnSe	M85x1	230.6
CO₂ Doublet Scan Lens	SL2-10.6-70-122Z-D10	10600	122	70 x 70	10	Standard	ZnSe	M79x1	125.6
CO₂ Doublet Scan Lens	SL2-10.6-110-150ZR	10600	150	105 x 105	14	Standard	ZnSe	M85x1	161.7
CO₂ Doublet Scan Lens	SL2-10.6-110-170Z-D20	10600	170	110 x 110	20	Standard	ZnSe	M85x1	177.1
CO₂ Doublet Scan Lens	SL2-10.6-120-200Z-D20	10600	200	120 x 120	20	Standard	ZnSe	M85x1	232
CO₂ Doublet Scan Lens	SL2-10.6-210-355Z-D20W	10600	355	210 x 210	20	Standard	ZnSe	M85x1	392.7
CO₂ Doublet Scan Lens	SL2-10.6-300-420AZR	10600	420	300 x 300	16	Standard	ZnSe	M85x1	466
CO₂ Doublet Scan Lens	SL2-10.6-350-490ZR	10600	490	350 x 350	18	Standard	ZnSe	M85x1	535.2
CO₂ Doublet Scan Lens	SL2-10.6-F170ZR-D20	10600	170	110 x 110	20	Standard	ZnSe	M85x1	177.1
CO₂ Doublet Scan Lens	SL2-10.6-F200ZR	10600	200	140 x 140	14	Standard	ZnSe	M85x1	229.4
CO₂ Doublet Scan Lens	SL2-10.6-F250ZR	10600	250	175 x 175	14	Standard	ZnSe	M85x1	286.1
CO₂ Doublet Scan Lens	SL2-10.6-F300ZR-D20	10600	300	170 x 170	20	Standard	ZnSe	M85x1	327.8
CO₂ Doublet Scan Lens	SL2-10.6-F560ZR-D30	10600	560	300 x 300	30	Standard	ZnSe	M85x1	604.4
CO₂ Doublet Scan Lens	SL2-10.6-F700ZR-D30	10600	700	500 x 500	30	Standard	ZnSe	M85x1	763.7
CO₂ Triplet Scan Lens	SL3-9.4-60-105Z	9400	105	60 x 60	14	Standard	ZnSe	M55x1	130.6
CO₂ Triplet Scan Lens	SL3-10.6-50-100Z	10600	100	50 x 50	25	Standard	ZnSe	M85x1	118.6
Achromatic Scan Lens	SLA-355-405-110-178	355 / 405	178	110 x 110	10	Standard	Optical Glass	M85x1	92.4
Achromatic Scan Lens	SLA-355-532-90-170	355 / 532	170	90 x 90	10	Standard	Optical Glass	M85x1	125.6
Achromatic Scan Lens	SLA-355-635-90-170	355 / 635	170	90 x 90	10	Standard	Optical Glass	M85x1	116.1
Achromatic Scan Lens	SLA-355-635-110-220	355 / 635	220	110 x 110	10	Standard	Optical Glass	M85x1	166.3
Achromatic Scan Lens	SLA-355-635-212-328	355 / 635	328	212 x 212	6	Standard	Optical Glass	M85x1	265.2
Achromatic Scan Lens	SLA-355-1064-40-100-D10	355/1064	100	40 x 40	10	Standard	Optical Glass	M58x1	43.5
Achromatic Scan Lens	SLA-1030-950-200-400	1030 / 950	400	200 x 200	30	Standard	Optical Glass	M85x1	390.2
Achromatic scan lens	SLA-1064-10.6-100-160-D10	1064/10600	160	100 x 100	10	Standard	ZnSe	M79x1	170.4
Achromatic Scan Lens	SLA-1064-450-60-260-D30-WC	1064/450	260	60 x 60	30	Standard	Fused Silica & Optical Glass	M85x1	228.0
Achromatic Scan Lens	SLA-1064-450-70-185-D30-WC	1064/450	185	70 x 70	30	Standard	Fused Silica & Optical Glass	M102x1	176.8
Achromatic Scan Lens	SLA-1064-532-25-60	1064 / 532	60	25 x 25	6	Standard	Optical Glass	M79/42x1	42.1
Achromatic Scan Lens	SLA-1064-532-100-163	1064 / 532	163	100 x 100	12	Standard	Optical Glass	M85x1	159.7
Achromatic Scan Lens	SLA-1064-532-175-254	1064 / 532	254	175 x 175	15	Standard	Optical Glass	M85x1	262.8
Achromatic Scan Lens	SLA-1064-630-150-254	1064 / 635	254	150 x 150	30	Standard	Optical Glass	M102x1	306.9
Achromatic Scan Lens	SLA-1064-635-100-163	1064 / 635	163	100 x 100	12	Standard	Optical Glass	M85x1	157.6
Achromatic Scan Lens	SLA-1064-635-180-260	1064 / 635	260	180 x 180	15	Standard	Optical Glass	M85x1	261.4
Achromatic Scan Lens	SLA-1064-635-200-360	1064 / 635	360	200 x 200	30	Standard	Optical Glass	M85x1	358.4
Achromatic Scan Lens	SLA-1064-850-160-254-D10	1064 / 850	254	160 x 160	10	Standard	Optical Glass	M80x1	261.7
Achromatic Scan Lens	SLA-1940-635-60-163	1940 / 635	163	60 x 60	14	Standard	Optical Glass	M85x1	128.2
Scan Lens	SLF-1064-63-8	1064	63	33 x 33	8	Standard	Optical Glass	M39x1	69
Scan Lens	SLF-1064-80-8	1064	80	52 x 52	8	Standard	Optical Glass	M39x1	94
Scan Lens	SLF-1064-100-8	1064	100	60 x 60	8	Standard	Optical Glass	M39x1	117.8
Scan Lens	SLF-1064-130-8	1064	130	80 x 80	8	Standard	Optical Glass	M39x1	142.4
Scan Lens	SLF-1064-160-8	1064	160	90 x 90	8	Standard	Optical Glass	M39x1	188.1
Scan Lens	SLF-1064-254-8	1064	254	155 x 155	8	Standard	Optical Glass	M39x1	293.5
Telecentric Scan Lens	TSL-9.4-9-40-D14	9400	40	9 x 9	14	Telecentric	ZnSe	M80x1	36.1
Telecentric Scan Lens	TSL-9.4-50-75	9400	75	50 x 50	20	Telecentric	ZnSe	M85x1	70.4
Telecentric Scan Lens	TSL-9.4-50-100Z-D20	9400	100	50 x 50	20	Telecentric	ZnSe	M85x1	118.8
Telecentric Scan Lens	TSL-9.4-70-120	9400	120	70 x 70	20	Telecentric	ZnSe	M85x1	111
Telecentric Scan Lens	TSL-9.4-90-170-D20	9400	170	90 x 90	20	Telecentric	ZnSe	M85x1	119.9
Telecentric Scan Lens	TSL-9.6-70-140ZA	9400	140	70 x 70	15	Telecentric	ZnSe	M85x1	88.3
Telecentric Scan Lens	TSL-193-38-100Q-D15	193	100	38 x 38	15	Telecentric	Fused Silica	M85x1	134.9
Telecentric Scan Lens	TSL-248-40-100Q	248	100	40 x 40	10	Telecentric	Fused Silica	M60x1	131.8
Telecentric Scan Lens	TSL-257-12-50Q	257	50	12 x 12	10	Telecentric	Fused Silica	M46x1	27.7
Telecentric Scan Lens	TSL-257-45-100Q	257	100	45 x 45	10	Telecentric	Fused Silica	M66x1	126.3
Telecentric Scan Lens	TSL-257-80-150Q	257	150	80 x 80	10	Telecentric	Fused Silica	M55x1	215.4
Telecentric Scan Lens	TSL-257-120-250Q-D14	257	250	120 x 120	14	Telecentric	Fused Silica	Flange	357.3
Telecentric Scan Lens	TSL-266-20-55Q	266	55	20 x 20	6	Telecentric	Fused Silica	M44x1	51.2
Telecentric Scan Lens	TSL-266-37-100Q-D12	266	100.4	37 x 37	12	Telecentric	Fused Silica	M80x1	140.2
Telecentric Scan Lens	TSL-266-50-100Q	266	100	50 x 50	5	Telecentric	Fused Silica	M85x1	135.6
Telecentric Scan Lens	TSL-266-120-253Q-D14	266	253	120 x 120	14	Telecentric	Fused Silica	Flange	361.9
Telecentric Scan Lens	TSL-343-180-330Q-D15	343-355	330	180 x 180	15	Telecentric	Fused Silica	M85x1	454.6
Telecentric Scan Lens	TSL-343-190-330Q-D14	343-355	330	190 x 190	14	Telecentric	Fused Silica	M85x1	441.5
Telecentric Scan Lens	TSL-343-220-420Q-D15	343-355	420	220 x 220	15	Telecentric	Fused Silica	M85x1	613.9
Telecentric Scan Lens	TSL-355-6-48Q-D15	355	48.1	6 x 6	15	Telecentric	Fused Silica	M85x1	70.7
Telecentric Scan Lens	TSL-355-8-32Q	343-355	32	8 x 8	10	Telecentric	Fused Silica	M39x1	16.3
Telecentric Scan Lens	TSL-355-15-65.5Q-D15	355	65.5	15 x 15	15	Telecentric	Fused Silica	M58x1	81.7
Telecentric Scan Lens	TSL-355-18-60Q	343-355	60	18 x 18	6	Telecentric	Fused Silica	M85x1	62.6
Telecentric Scan Lens	TSL-355-20-70Q-D10	343-355	70	20 x 20	10	Telecentric	Fused Silica	M55x1	93.3
Telecentric Scan Lens	TSL-355-35-80Q	343-355	80	35 x 35	6	Telecentric	Fused Silica	M55x1	104.4
Telecentric Scan Lens	TSL-355-35-100Q	343-355	100	35 x 35	14	Telecentric	Fused Silica	M85x1	129.7
Telecentric Scan Lens	TSL-355-50-103Q	343-355	103	50 x 50	9	Telecentric	Fused Silica	M85x1	137.4
Telecentric Scan Lens	TSL-355-50-150Q-D10	343-355	150	50 x 50	10	Telecentric	Fused Silica	M85x1	210.3
Telecentric Scan Lens	TSL-355-60-167Q	343-355	167	60 x 60	10	Telecentric	Fused Silica	M85x1	222.6
Telecentric Scan Lens	TSL-355-63-109Q	343-355	109	63 x 63	6	Telecentric	Fused Silica	M85x1	151.4
Telecentric Scan Lens	TSL-355-65-163Q	343-355	163	65 x 65	10	Telecentric	Fused Silica	M85x1	206.3
Telecentric Scan Lens	TSL-355-70-100Q-D12	355	100	70 x 70	12	Telecentric	Fused Silica	M85x1	123.4
Telecentric Scan Lens	TSL-355-70-120Q-D10	355	120	70 x 70	10	Telecentric	Fused Silica	M79x1	147.4
Telecentric Scan Lens	TSL-355-70-176.5Q-D14	355	176.5	70 x 70	14	Telecentric	Fused Silica	M85x1	231.0
Telecentric Scan Lens	TSL-355-86-254Q	343-355	254	86 x 86	6	Telecentric	Fused Silica	M85x1	147.1
Telecentric Scan Lens	TSL-355-90-163Q	343-355	163	90 x 90	10	Telecentric	Fused Silica	M85x1	222
Telecentric Scan Lens	TSL-355-100-150Q	343-355	150	100 x 100	10	Telecentric	Fused Silica	M79 x 1	197.9
Telecentric Scan Lens	TSL-355-100-160Q	343-355	160	100 x 100	14	Telecentric	Fused Silica	M85x1	237.8
Telecentric Scan Lens	TSL-355-100-170Q	343-355	170	100 x 100	10	Telecentric	Fused Silica	M85x1	238.1
Telecentric Scan Lens	TSL-355-100-294Q-D30	343-355	294	100 x 100	30	Telecentric	Fused Silica	M85x1	392.5
Telecentric Scan Lens	TSL-355-130-290Q	343-355	290	130 x 130	10	Telecentric	Fused Silica	M85x1	484
Telecentric Scan Lens	TSL-355-160-260Q	343-355	260	160 x 160	10	Telecentric	Fused Silica	M85x1	371
Telecentric Scan Lens	TSL-355-160-360Q	343-355	360	160 x 160	10	Telecentric	Fused Silica	M150x1	440.1
Telecentric Scan Lens	TSL-355-180-300-D10	343-355	300	180 x 180	10	Telecentric	Fused Silica	M85x1	402.1
Telecentric Scan Lens	TSL-355-180-320Q-D15-T2	343-355	320	180 x 180	15	Telecentric	Fused Silica	M85x1	468.5
Telecentric Scan Lens	TSL-355-200-370Q-T3	343-355	370	200 x 200	14	Telecentric	Fused Silica	M85x1	532.1
Telecentric Scan Lens	TSL-355-200-920Q-D14	343-355	920	200 x 200	14	Telecentric	Fused Silica	M55x1	1120
Telecentric Scan Lens	TSL-355-230-370Q-D14-V1	343-355	370	230 X 230	14	Telecentric	Fused Silica	Flange	498.5
Telecentric Scan Lens	TSL-355-230-390Q-D20	343-355	390	230 x 230	20	Telecentric	Fused Silica	M85x1	539.5
Telecentric Scan Lens	TSL-355-300-450Q-D14	343-355	450	300 x 300	14	Telecentric	Fused Silica	M79x1	592.2
Telecentric Scan Lens	TSL-355-310-450Q-D10	343-355	450	310 x 310	10	Telecentric	Fused Silica	M85x1	613.2
Telecentric Scan Lens	TSL-405-29-55Q	405	55	29 x 29	6	Telecentric	Fused Silica	M55x1	59.5
Telecentric Scan Lens	TSL-450-20-128.9Q-D30	450	128.9	20 x 20	30	Telecentric	Fused Silica	M85x1	156.6
Telecentric Scan Lens	TSL-450-25-100Q-D30	450	100	25 x 25	30	Telecentric	Fused Silica	M85x1	152.5
Telecentric Scan Lens	TSL-450-30-130Q-D30	450	130	30 x 30	30	Telecentric	Fused Silica	M85x1	174.3
Telecentric Scan Lens	TSL-450-35-130Q-D30	450	130	35 x 35	30	Telecentric	Fused Silica	M85x1	101.4
Telecentric Scan Lens	TSL-450-40-128.9Q-D20	450	128.9	40 x 40	20	Telecentric	Fused Silica	M85x1	156.6
Telecentric Scan Lens	TSL-450-50-160Q-D30	450	160	50 x 50	30	Telecentric	Fused Silica	M85x1	120.5
Telecentric Scan Lens	TSL-532-5-25Q	515-545	25	5 x 5	10	Telecentric	Fused Silica	M39x1	7.1
Telecentric Scan Lens	TSL-532-6-48Q-D15	515-545	48	6 x 6	15	Telecentric	Fused Silica	M85x1	60.2
Telecentric Scan Lens	TSL-532-10-56Q-D20-V1	532	56	10 x 10	20	Telecentric	Fused Silica	M55x1	25.3
Telecentric Scan Lens	TSL-532-15-67Q-D15	515-545	67	15 x 15	15	Telecentric	Fused Silica	M85x1	68.7
Telecentric Scan Lens	TSL-532-30-80Q	515-545	80	30 x 30	12	Telecentric	Fused Silica	M55x1	80.6
Telecentric Scan Lens	TSL-532-35-100Q-D10	515-545	100	35 x 35	10	Telecentric	Fused Silica	M55x1	135.3
Telecentric Scan Lens	TSL-532-40-100Q	515-545	100	40 x 40	10	Telecentric	Fused Silica	M85x1	136.2
Telecentric Scan Lens	TSL-532-53-100	532	100	53 x 53	15	Telecentric	Optical Glass	M85x1	127.4
Telecentric Scan Lens	TSL-532-53-125Q-D10	515-545	125	53 x 53	10	Telecentric	Fused Silica	M85x1	170.8
Telecentric Scan Lens	TSL-532-65-163Q	515-545	163	65 x65	12	Telecentric	Fused Silica	M85x1	195
Telecentric Scan Lens	TSL-532-66-102	532	102	66 x 66	15	Telecentric	Optical Glass	M85x1	97.2
Telecentric Scan Lens	TSL-532-70-100	532	100	70 x 70	14	Telecentric	Optical Glass	M85x1	93
Telecentric Scan Lens	TSL-532-75-163	532	163	75 x 75	10	Telecentric	Optical Glass	M85x1	167.2
Telecentric Scan Lens	TSL-532-90-163Q	515-545	163	90 x 90	10	Telecentric	Fused Silica	M85x1	218.8
Water Cool Telecentric Scan Lens	TSL-532-95-180Q-D10-WC	532	180	95 x 95	10	Telecentric	Fused Silica	Flange	260.6
Telecentric Scan Lens	TSL-532-110-200Q-D14	532	200	110 x 110	14	Telecentric	Fused Silica	M79x1	278.7
Telecentric Scan Lens	TSL-532-140-200N	532	200	140 x 140	10	Telecentric	Optical Glass	M85x1	268.5
Telecentric Scan Lens	TSL-532-141-305Q-D15	515-545	305	141 x 141	15	Telecentric	Fused Silica	M85x1	486.9
Telecentric Scan Lens	TSL-532-310-450Q-D15	532	450	310 x 310	15	Telecentric	Fused Silica	M120x1	575.9
Telecentric Scan Lens	TSL-633-30-100	633	100	30 x 30	10	Telecentric	Optical Glass	M85x1	99.1
Telecentric Scan Lens	TSL-633-75-160	633	160	75 x 75	10	Telecentric	Optical Glass	M85x1	212
Telecentric Scan Lens	TSL-790-10-50Q-D14	790	50	10 x 10	14	Telecentric	Fused Silica	M27x1	23
Telecentric Scan Lens	TSL-980-45-110	980	112	45 x 45	25	Telecentric	Optical Glass	M85x1	105.1
Telecentric Scan Lens	TSL-980-65-133	980	133	65 x 65	10	Telecentric	Optical Glass	M85x1	178.1
Telecentric Scan Lens	TSL-980-90-162Q-D15-V2	900-1070	163	90 x 90	15	Telecentric	Fused Silica	M85x1	210
Telecentric Scan Lens	TSL-980-130-190-D30	980	190	130 x 130	30	Telecentric	Optical Glass	M120x1	206.2
Telecentric Scan Lens	TSL-1064-7-50Q-D15	1030-1080	50	7 x 7	15	Telecentric	Fused Silica	M85x1	60.6
Telecentric Scan Lens	TSL-1064-10-56Q-D20	1030-1080	56	10 x 10	20	Telecentric	Fused Silica	M55x1	23.8
Telecentric Scan Lens	TSL-1064-15-65Q-D15	1030-1080	65	15 x 15	15	Telecentric	Fused Silica	M85x1	71.7
Telecentric Scan Lens	TSL-1064-18-56-V1	1064	56	18 x 18	10	Telecentric	Optical Glass	M39x1	59.3
Telecentric Scan Lens	TSL-1064-20-82Q	1030-1080	82	20 x 20	15	Telecentric	Fused Silica	M85x1	85
Telecentric Scan Lens	TSL-1064-35-75Q-D10	1030-1080	75	35 x 35	10	Telecentric	Fused Silica	M85x1	47
Telecentric Scan Lens	TSL-1064-35-100Q-D15	1030-1080	100	35 x 35	15	Telecentric	Fused Silica	M85x1	136
Telecentric Scan Lens	TSL-1064-37-100Q-D20	1030-1090	100	37 x 37	20	Telecentric	Fused Silica	M85x1	131
Telecentric Scan Lens	TSL-1064-40-80-D25	1064	80	43 x 43	25	Telecentric	Optical Glass	M85x1	77.8
Telecentric Scan Lens	TSL-1064-40-100-D25	1064	100	40 x 40	25	Telecentric	Optical Glass	M85x1	118.9
Telecentric Scan Lens	TSL-1064-50-100Q-D10	1030-1080	100	50 x 50	10	Telecentric	Fused Silica	M85x1	126.1
Telecentric Scan Lens	TSL-1064-50-105Q-D10	1030-1080	105	50 x 50	10	Telecentric	Fused Silica	M85x1	141
Telecentric Scan Lens	TSL-1064-50-109Q-D14	1030-1080	109	50 x 50	14	Telecentric	Fused Silica	M85x1	147.3
Telecentric Scan Lens	TSL-1064-52-125Q-D14	1064	125	52 x 52	14	Telecentric	Fused Silica	M55x1	166.8
Telecentric Scan Lens	TSL-1064-60-107	1064	107	60 x 60	10	Telecentric	Optical Glass	M79x1	135.6
Telecentric Scan Lens	TSL-1064-66-125	1064	125	66 x 66	15	Telecentric	Optical Glass	M85x1	148.7
Telecentric Scan Lens	TSL-1064-70-150Q-V1	1030-1080	150	70 x 70	20	Telecentric	Fused Silica	M85x1	202.8
Telecentric Scan Lens	TSL-1064-73-163	1064	163	73 x 73	15	Telecentric	Optical Glass	M85x1	214.1
Telecentric Scan Lens	TSL-1064-75-160Q-D20	1030-1080	160	75 x 75	20	Telecentric	Fused Silica	M85x1	211.4
Telecentric Scan Lens	TSL-1064-80-160Q-D14	1030-1080	160	80 x 80	14	Telecentric	Fused Silica	M85x1	192.5
Telecentric Scan Lens	TSL-1064-80-180Q	1030-1080	180	80 x 80	10	Telecentric	Fused Silica	M85x1	259.4
Telecentric Scan Lens	TSL-1064-85-167Q-D20	1030-1080	167	85 x 85	20	Telecentric	Fused Silica	M85x1	226.3
Telecentric Scan Lens	TSL-1064-90-163Q	1030-1080	163	90 x 90	15	Telecentric	Fused Silica	M85x1	201
Telecentric Scan Lens	TSL-1064-90-190	1064	190	90 x 90	18	Telecentric	Optical Glass	M85x1	166.4
Telecentric Scan Lens	TSL-1064-100-170Q	1030-1080	170	100 x 100	10	Telecentric	Fused Silica	M85x1	224
Telecentric Scan Lens	TSL-1064-100-170Q-D20	1030-1080	170	100 x 100	20	Telecentric	Fused Silica	M85x1	196.9
Telecentric Scan Lens	TSL-1064-120-240Q-D14	1064	240	120 x 120	14	Telecentric	Fused Silica	M85x1	345
Telecentric Scan Lens	TSL-1064-125-254-D20	1064	254	125 x 125	20	Telecentric	Optical Glass	M85x1	339
Telecentric Scan Lens	TSL-1064-126-216	1064	216	126 x 126	15	Telecentric	Optical Glass	TK253	343.3
Telecentric Scan Lens	TSL-1064-130-254Q-D20	1030-1080	254	130 x 130	20	Telecentric	Fused Silica	M85x1	353.8
Telecentric Scan Lens	TSL-1064-140-220	1064	220	140 x 140	16	Telecentric	Optical Glass	M100x1	289.9
Telecentric Scan Lens	TSL-1064-150-420Q	1030-1080	420	150 x 150	14	Telecentric	Fused Silica	M85x1	636.4
Telecentric Scan Lens	TSL-1064-190-330-D14	1064	330	190 x 190	14	Telecentric	Optical Glass	M85x1	510.4
Telecentric Scan Lens	TSL-1550-10-55Q	1550	55	10 x 10	10	Telecentric	Fused Silica	M44x1	51.3
Telecentric Scan Lens	TSL-1550-15-80Q	1550	80	15 x 15	12	Telecentric	Fused Silica	M85x1	91.9
Telecentric Scan Lens	TSL-1550-20-55Q	1550	55	20 x 20	10	Telecentric	Fused Silica	M85x1	70.7
Telecentric Scan Lens	TSL-1550-80-195Q	1550	195	80 x 80	15	Telecentric	Fused Silica	M85x1	279.9
Telecentric Scan Lens	TSL-2000-20-58Q	2000	58	20 x 20	10	Telecentric	Fused Silica	M85x1	79
Telecentric Scan Lens	TSL-2000-60-103Q	2000	103	60 x 60	10	Telecentric	Fused Silica	M85x1	128.1
Telecentric Scan Lens	TSL-2000-90-170Q	2000	170	90 x 90	15	Telecentric	Fused Silica	M85x1	210
Telecentric Scan Lens	TSL-2900-50-75Z	2900	75	50 x 50	10	Telecentric	ZnSe	M85x1	90
Telecentric Scan Lens	TSL2-9.4-60-100Z-D14	9400	100	60 X 60	14	Telecentric	ZnSe	M92x1	130.9
Achromatic Telecentric Scan Lens	TSLA-355-635-50-120	355 / 635	120	50 x 50	6	Telecentric	Optical Glass	M85x1	85.4
Achromatic Telecentric Scan Lens	TSLA-532-635-50-120	532 / 635	120	50 x 50	15	Telecentric	Optical Glass	Flange	52
Achromatic Telecentric Scan Lens	TSLA-532-635-60-150	532 / 635	150	60 x 60	15	Telecentric	Optical Glass	Flange	79.5
Achromatic Telecentric Scan Lens	TSLA-808-635-70-163	808 / 635	163	70 x 70	14	Telecentric	Optical Glass	M92x1	99.6
Achromatic Telecentric Scan Lens	TSLA-1064-515-50-110-D14	1064/515	110	50 x 50	14	Telecentric	Optical Glass	M67x1	90.3
Achromatic Telecentric Scan Lens	TSLA-1064-532-60-110	1064 / 532	110	60 x 60	10	Telecentric	Optical Glass	M85x1	56.7
Achromatic Telecentric Scan Lens	TSLA-1064-633-18-56	1064 / 633	56	18 x 18	12	Telecentric	Optical Glass	M85x1	64.1
Achromatic Telecentric Scan Lens	TSLA-1064-633-30-75-D10	1064 / 633	75	30 x 30	10	Telecentric	Optical Glass	M79x1	50.3
Achromatic Telecentric Scan Lens	TSLA-1064-660-60-163	1064 / 660	163	60 x 60	15	Telecentric	Optical Glass	M85x1	108.9

Wavelength Opto-Electronic F-Theta Lenses Products Table

2.2 Beam Expanders

Optics for Additive Manufacturing & 3D Printing Systems - Laser Beam Expanders

Beam expanders increase the diameter of the laser beam before it reaches the focusing optics. By expanding the beam, the optical system can reduce divergence, improve focusability, and better control the laser spot size on the material surface. This leads to enhanced resolution, higher processing speeds, and greater overall efficiency in 3D printing applications.

Part Number	Wavelength (nm)	Magnification	Type	Input CA (mm)	Output CA (mm)	Mounting Thread	Max. Outer Dia (mm)	Total Length (mm)	Max. Input Beam Dia (1/e(²) (mm)
BXZ-1342-1-3X-D10G *NEW*	1342	1-3X	Manual Zoom	18.0	43.0	M59x1	75.0	225.0	10.0
BEX-3.8-10X-D8 *NEW*	3800	10X	Fixed	23.0	92.0	M39x1	102.0	135.5	8.0
BEX-3.8-10X-D5 *NEW*	3800	10X	Fixed	14.0	57.0	M26x1	65.0	130.0	5.0
BEX-10.6-9X-D11 *NEW*	10600	9X	Fixed	17.0	118.0	M54x1	136.0	196.0	11.0
BEX-532-8X-D9.5	532	8X	Fixed	19.0	110.0	M65x1	124.0	245.0	9.5
BXZ-532-1-4X-D4	532	1-4X	Manual Zoom	12.0	18.0	M30x1	18.0	155.0	4.0
BXZ-1064-1-4X-D6	1064	1-4X	Manual Zoom	12.0	30.0	M30x1	30.0	135.0	6.0
BXZ-1064-1-4X-G-MOT-WC	1064	1-4X	Motorized Zoom	27.0	48.0	-	70.0	252.0	12.0
BXZ-1980-1-3X-CON	1980	1-3X	Manual Zoom	21.0	39.0	M53x0.75	59.0	161.0	10.0
BEX-2000-1.5X	2000	1.5X	Fixed	8.0	31.0	M30x1	46.0	85.0	-
BEX-2000-2X	2000	2X	Fixed	8.0	31.0	M30x1	46.0	85.0	-
BEX-2000-3X	2000	3X	Fixed	8.0	31.0	M30x1	46.0	85.0	-
BEX-2000-4X	2000	4X	Fixed	8.0	31.0	M30x1	46.0	85.0	-
BEX-2000-5X	2000	5X	Fixed	8.0	31.0	M30x1	46.0	85.0	-
BEX-2000-6X	2000	6X	Fixed	8.0	31.0	M30x1	46.0	85.0	-
BEX-2000-7X	2000	7X	Fixed	8.0	31.0	M30x1	46.0	85.0	-
BEX-2000-8X	2000	8X	Fixed	8.0	31.0	M30x1	46.0	85.0	-
BEX-2000-10X	2000	10X	Fixed	6.0	31.0	M30x1	46.0	85.0	-
BEX-1550-2.5X	1550	2.5X	Fixed	8.0	23.0	M22x0.75	34.0	65.2	-
BEX-1550-3X	1550	3X	Fixed	8.0	23.0	M22x0.75	34.0	70.6	-
BEX-1550-7X	1550	7X	Fixed	10.0	25.0	-	32.0	75.0	-
BEX-1550-8X	1550	8X	Fixed	10.0	30.0	M22x0.75	43.0	102.5	3.0
BEX-1550-10X	1550	10X	Fixed	10.0	58.0	-	65.0	98.0	-
BEX-1550-20X	1550	20X	Fixed	7.0	49.0	M22x0.75	60.0	120.0	-
BEX-1064-1X-MOT	1064	1X	Motorized Zoom	14.0	18.0	-	-	95.0	8.0
BEX-1064-1X-V2	1064	1X	Fixed	18.0	20.0	M28x1	33.0	63.8	-
BEX-1064-1.2X	1064	1.2X	Fixed	16.0	23.0	M22x0.75	29.0	54.9	-
BEX-1064-1.5X	1064	1.5X	Fixed	15.5	23.0	M22x0.75	25.0	44.5	-
BEX-1064-1.5X-C	1064	1.5X	Fixed	12.0	24.0	C-mount	35.0	67.9	-
BEX-1064-2X1i	1064	2X	Fixed	15.0	23.0	M22x0.75	29.0	50.0	-
BEX-1064-2X-C	1064	2X	Fixed	8.0	24.0	C-mount	35.0	67.9	-
BEX-1064-2.8X	1064	2.8X	Fixed	9.0	24.0	M13x0.75	30.0	83.5	-
BEX-1064-3Xi	1064	3X	Fixed	10.0	20.0	M22x0.75	26.0	60.0	-
BEX-1064-3X-C	1064	3X	Fixed	10.0	24.0	C-mount	35.0	67.9	-
BEX-1064-4Xi	1064	4X	Fixed	10.0	22.0	M22x0.75	29.0	81.1	-
BEX-1064-5X-D8	1064	5X	Fixed	13.5	36.0	M30x1	47.0	113.0	8.0
BEX-1064-5X	1064	5X	Fixed	10.0	23.0	M22x0.75	29.0	72.0	-
BEX-1064-5Z1	1064	5X	Fixed	10.0	32.0	M30x1	46.0	80.0	-
BEX-1064-6Xi	1064	6X	Fixed	5.0	22.0	M22x0.75	29.0	71.2	-
BEX-1064-7X	1064	7X	Fixed	6.0	23.0	M22x0.75	29.0	76.4	-
BEX-1064-8Xi	1064	8X	Fixed	10.0	23.0	M22x0.75	29.0	77.3	-
BEX-1064-10X-V1	1064	10X	Fixed	8.0	22.0	M22x0.75	29.0	83.5	-
BEX-1064-13X-D4	1064	13X	Fixed	12.0	68.0	M30x1	81.0	198.0	4.0
BEX-1064-15X	1064	15X	Fixed	7.5	28.0	M30x1	45.0	99.1	-
BEX-1064-15X-D4	1064	15X	Fixed	12.0	68.0	M30x1	81.0	198.0	4.0
BEX-1064-20X	1064	20X	Fixed	8.0	28.0	M22x0.75	45.0	91.2	-
BEX-1064-40X	1064	40X	Fixed	8.0	128.0	M30x1	157.0	188.7	-
BEX-633-3X	633	3X	Fixed	10.0	22.0	M22x0.75	33.0	63.7	-
BEX-633-5X	633	5X	Fixed	8.0	23.0	M22x0.75	33.0	110.0	-
BEX-633-8X	633	8X	Fixed	11.0	23.5	M28x0.55	35.0	117.5	-
BEX-633-10X	633	10X	Fixed	8.0	23.0	M22x0.75	30.0	146.0	-
BEX-633-20X	633	20X	Fixed	8.0	76.0	M22x0.75	30.0	198.0	-
BEX-633-40X	633	40X	Fixed	8.0	100.0	M22x0.75	40.0	246.0	-
BEX-633-50X	633	50X	Fixed	10.0	81.0	M22x0.75	30.0	304.0	-
BEX-532-1X	532	1X	Fixed	15.0	18.0	M30x1	36.0	63.0	-
BEX-532-1.5X	532	1.5X	Fixed	10.0	23.0	M22x0.75	30.0	68.8	-
BEX-532-2X2-V1	532	2X	Fixed	8.0	23.0	M22x0.75	33.0	61.5	-
BEX-532-3Xi	532	3X	Fixed	8.0	23.0	M22x0.75	30.0	83.0	-
BEX-532-4Xi	532	4X	Fixed	6.0	23.0	M22x0.75	30.0	83.0	-
BEX-532-5Xi	532	5X	Fixed	8.0	24.0	M22x0.75	30.0	81.5	-
BEX-532-6X2	532	6X	Fixed	5.0	17.0	-	25.0	70.6	-
BEX-532-10Xi	532	10X	Fixed	8.0	24.0	M22x0.75	30.0	85.3	-
BEX-532-15X	532	15X	Fixed	6.0	32.0	M30x1	30.0	85.0	-
BEX-532-20X	532	20X	Fixed	6.0	38.0	M30x1	40.0	95.2	-
BEX-532-25X-D1	532	25X	Fixed	10.0	36.0	M40x0.75	50.0	153.0	1.0
BEX-450-20X	450	20X	Fixed	6.0	31.0	M43x0.5	46.0	97.0	1.4
BEX-450-10X	450	10X	Fixed	9.0	28.0	M43x0.5	46.0	85.6	2.5
BEX-450-7X	450	7X	Fixed	20.0	26.0	-	38.0	128.0	2.0
BEX-450-5X	450	5X	Fixed	8.0	28.0	M43x0.5	46.0	78.0	2.0
BEX-450-3X	450	3X	Fixed	8.0	18.0	M27x0.75	28.0	52.5	3.0
BEX-450-2X	450	2X	Fixed	8.0	18.0	M27x0.75	28.0	52.5	3.0
BEX-450-1.5X	450	1.5X	Fixed	8.0	18.0	M43x0.5	28.0	52.5	5.0
BEX-405-1.5X	405	1.5X	Fixed	8.0	26.0	M30x1	46.0	62.3	-
BEX-405-2X	405	2X	Fixed	8.0	26.0	M30x1	46.0	62.3	-
BEX-405-3X-V1	405	3X	Fixed	8.0	18.0	M22x0.75	28.0	52.5	-
BEX-405-5X	405	5X	Fixed	8.0	28.0	M30x1	46.0	78.0	-
BEX-405-10X	405	10X	Fixed	9.0	28.0	M30x1	46.0	85.6	-
BEX-405-20X	405	20X	Fixed	6.0	31.0	M30x1	46.0	77.0	-
BEX-355-1X	355	1X	Fixed	15.0	18.0	M30x1	36.0	61.0	-
BEX-355-2X-V1	355	2X	Fixed	8.0	28.0	M30x1	46.0	82.0	7.0
BEX-355-2X2	355	2X	Fixed	6.0	23.0	M22x0.75	33.0	57.0	-
BEX-355-2.5X	355	2.5X	Fixed	12.0	23.4	M30x1	36.0	61.0	-
BEX-355-4X-V1	355	4X	Fixed	8.0	28.0	M30x1	46.0	82.0	-
BEX-355-5X	355	5X	Fixed	6.0	28.0	M30x1	46.0	73.5	-
BEX-355-7X	355	7X	Fixed	6.0	28.0	M30x1	46.0	88.1	-
BEX-355-7X-D1	355	7X	Fixed	4.0	9.6	M14x0.5	16.0	54.0	1.0
BEX-355-8X	355	8X	Fixed	6.0	28.0	M30x1	46.0	84.0	-
BEX-355-10X-D0.8	355	10X	Fixed	8.0	18.0	M22x0.75	28.0	71.5	0.8
BEX-355-10X-D1	355	10X	Fixed	4.0	13.6	M18x0.5	20.0	50.0	1.0
BEX-355-15X-D1	355	15X	Fixed	4.0	19.0	M24x0.5	27.0	69.0	1.0
BEX-355-20X-V1	355	20X	Fixed	10.0	28.0	M30x1	46.0	97.0	-
BEX-355-30X	355	30X	Fixed	8.0	36.0	M30x1	45.0	173.0	1.0
BEX-266-1.5X	266	1.5X	Fixed	8.0	24.0	M22x0.75	30.0	63.7	-
BEX-266-2X	266	2X	Fixed	8.0	24.0	M22x0.75	30.0	73.0	-
BEX-266-3X	266	3X	Fixed	10.0	23.0	M22x0.75	30.0	68.7	-
BEX-266-5X	266	5X	Fixed	10.0	23.0	M22x0.75	30.0	69.6	-
BEX-266-10X	266	10X	Fixed	6.0	23.0	M22x0.75	30.0	95.6	-
BEX-266-20X	266	20X	Fixed	1.5	30.0	M22x0.75	30.0	96.0	-
BEX-3.9-14X	3900	14X	Fixed	11.0	49.0	M30x1	60.0	113.0	3.0
BEX-9.4-1X	9400	1X	Fixed	16.0	18.0	-	20.0	44.1	-
BEX-9.4-2X	9400	2X	Fixed	16.5	23.0	-	20.0	51.0	-
BEX-9.4-2.5X	9400	2.5X	Fixed	13.0	21.0	-	20.0	56.0	-
BEX-9.4-3X1	9400	3X	Fixed	10.0	22.0	-	20.0	32.5	-
BEX-9.4-3X2	9400	3X	Fixed	18.0	30.0	-	20.0	61.0	-
BEX-9.4-4Z1	9400	4X	Fixed	10.0	20.0	-	20.0	69.0	-
BEX-9.4-5Z1	9400	5X	Fixed	13.0	23.0	-	20.0	37.0	-
BEX-10.6-1X	10600	1X	Fixed	16.0	18.0	-	20.0	27.9	-
BEX-10.6-2Z1-V1	10600	2X	Fixed	10.7	23.0	M22x0.75	32.0	54.5	-
BEX-10.6-2Z3i-V1	10600	2X	Fixed	15.5	28.0	M22x0.75	36.0	59.0	-
BEX-10.6-2.5Z2i	10600	2.5X	Fixed	16.0	21.0	-	20.0	60.0	-
BEX-10.6-3Z2i	10600	3X	Fixed	10.0	20.0	M33x0.75	40.0	54.9	-
BEX-10.6-3Z5i	10600	3X	Fixed	16.0	36.0	M22x0.75	28.0	59.0	-
BEX-10.6-3Z6i	10600	3X	Fixed	15.5	28.0	M22x0.75	28.0	59.0	-
BEX-10.6-3.5Z	10600	3.5X	Fixed	10.5	16.0	M16x0.75	28.0	71.0	-
BEX-10.6-4Z2i	10600	4X	Fixed	15.0	28.0	M22x0.75	28.0	71.0	-
BEX-10.6-5Z1i	10600	5X	Fixed	13.0	23.0	M22x0.75	30.0	70.0	-
BEX-10.6-6Zi	10600	6X	Fixed	11.0	26.0	M22x0.75	40.0	54.9	-
BEX-10.6-6Z1i	10600	6X	Fixed	11.0	36.0	M22x0.75	32.0	50.0	-
BEX-10.6-8Z1	10600	8X	Fixed	13.0	33.0	M22x0.75	36.0	48.1	-
BEX-10.6-8Z2	10600	8X	Fixed	10.5	23.4	M22x0.75	28.0	57.4	-
BEX-10.6-10Z1i	10600	10X	Fixed	10.0	36.0	M22x0.75	28.0	61.0	-
BEX-10.6-12X	10600	12X	Fixed	10.0	36.0	M22x0.75	44.0	75.5	-
BEX-10.6-15X	10600	15X	Fixed	10.0	40.0	M22x0.75	36.0	60.0	-
BEX-10.6-20X	10600	20X	Fixed	9.0	52.0	M25x0.75	20.0	27.9	-
BEX-10.6-30X	10600	30X	Fixed	16.0	97.0	M41x0.75	108.0	145.0	3.0
BEX-10.6-1.5Z	10600	1.5X	Fixed	12.0	14.0	M22x0.75	28.0	71.0	-
BEX-10.6-2Z4	10600	2X	Fixed	10.0	15.0	M22x0.75	36.0	67.3	-
BEX-10.6-2.5Z	10600	2.5X	Fixed	10.0	15.0	M22x0.75	30.0	70.0	-
BEX-10.6-2.5Z1	10600	2.5X	Fixed	10.0	16.0	M22x0.75	32.0	76.0	-
BEX-10.6-3Z1	10600	3X	Fixed	10.0	16.0	M22x0.75	44.0	75.0	-
BEX-10.6-3.3Z1	10600	3.3X	Fixed	10.0	15.0	M22x0.75	44.0	121.7	-
BEX-10.6-3Z3T	10600	3X	Fixed	10.0	16.0	M16x0.75	20.0	37.0	-
BEX-10.6-3.5Z	10600	3.5X	Fixed	10.5	16.0	M22x0.75	44.0	125.0	-
BEX-10.6-4Z	10600	4X	Fixed	8.0	15.0	M30x1	50.0	109.2	-
BEX-10.6-5Z	10600	5X	Fixed	10.0	16.0	M30x1	53.0	118.4	-
BEX-10.6-6Z2	10600	6X	Fixed	10.0	15.0	M30x1	65.0	144.0	-
BET0101.5	10600	1.5X	Fixed	23.0	28.0	M30x1	39.6	75.2	-
BET0102A	10600	2X	Fixed	23.0	28.0	M30x1	39.6	75.6	-
BET0102.5	10600	2.5X	Fixed	23.0	28.0	M30x1	39.6	75.6	-
BET0103A	10600	3X	Fixed	23.0	28.0	M30x1	39.6	69.9	-
BET0104A	10600	4X	Fixed	23.0	28.0	M30x1	39.6	75.2	-
BET0105A	10600	5X	Fixed	23.0	28.0	M30x1	39.6	72.1	-
BET0106A	10600	6X	Fixed	23.0	28.0	M30x1	39.6	72.1	-
BET0107A	10600	7X	Fixed	23.0	28.0	M30x1	39.6	79.1	-
BET0108A	10600	8X	Fixed	23.0	28.0	M30x1	39.6	77.4	-
BET0109A	10600	9X	Fixed	23.0	28.0	M30x1	39.6	88.0	-
BET0110A	10600	10X	Fixed	18.0	30.0	M30x1	37.6	88.0	-
BET0101.5A-WC	10600	1.5X	Water Cool	23.0	28.0	M32x0.75	50.0	72.0	-
BET0102A-WC	10600	2X	Water Cool	23.0	28.0	M32x0.75	50.0	72.0	-
BET0102.5-WC	10600	2.5X	Water Cool	23.0	28.0	M32x0.75	50.0	72.0	-
BET0103A-WC	10600	3X	Water Cool	23.0	28.0	M32x0.75	50.0	72.0	-
BET0104A-WC	10600	4X	Water Cool	23.0	28.0	M32x0.75	50.0	72.0	-
BET0105A-WC	10600	5X	Water Cool	23.0	28.0	M32x0.75	50.0	72.0	-
BET0106A-WC	10600	6X	Water Cool	23.0	28.0	M32x0.75	50.0	72.0	-
BET0107A-WC	10600	7X	Water Cool	23.0	28.0	M32x0.75	50.0	72.0	-
BET0108A-WC	10600	8X	Water Cool	23.0	28.0	M32x0.75	50.0	72.0	-
BET0110A-WC	10600	10X	Water Cool	23.0	28.0	M32x0.75	50.0	72.0	-
BXZ-1550-1-4X	1550	1X - 4X	Manual Zoom	14.0	28.0	M28x0.75	48.0	126.8	7.0@1X 4.0@4X
BXZ-1550-2-8X-D6	1550	2X - 8X	Manual Zoom	15.0	55.0	M32x0.75	87.0	218.0	11.0@3X 6.0@8X
BXZ-1064-1-3X-A1	1064	1X - 3X	Manual Zoom	23.0	38.0	-	-	131.3	10.0@1X 8.0@3X
BXZ-1064-1-4X	1064	1X - 4X	Manual Zoom	23.0	28.0	-	-	176.0	3.0@1X 2.0@4X
BXZ-1064-1-4X-G-48OP	1064	1X - 4X	Manual Zoom	22.0	48.0	M72x1	82.0	241.0	13.0@1X 9.0@4X
BXZ-1064-1-8V	1064	1X - 8X	Manual Zoom	12.0	33.0	M51x0.75	54.0	162.0	5.0@1X 3.0@8X
BXZ-1064-2-4X-G7	1064	2X - 4X	Manual Zoom	12.0	34.0	-	-	187.5	7.0@2X 6.5@4X
BXZ-1064-2-8X-A	1064	2X - 8X	Manual Zoom	16.0	60.0	M34x0.75	-	212.7	8.0@2X 5.0@8X
BXZ-1064-2-8X-G-V2	1064	2X - 8X	Manual Zoom	12.0	32.0	M53 x 0.75	64.0	220.0	6.0@2X 2.5@8X
BXZ-1064-1-3X-G	1064	1X - 3X	Manual Zoom	16.0	26.0	-	-	120.0	9.0@1X 5.0@3X
BXZ-1064-0.5-2X-D10-CON	1064	0.5X - 2X	Manual Zoom	18.0	32.0	M51x0.75	55.5	150.0	10.0
BXZ-980-1-3X-A1-CON	980	1X - 3X	Manual Zoom	19.0	37.0	M55x0.75	60.0	141.5	10.0
BXZ-532-1-3X	532	1X - 3X	Manual Zoom	23.0	23.0	-	-	110.0	6.0@1X 5.5@3X
BXZ-532-1-4X	532	1X - 4X	Manual Zoom	23.0	28.0	-	-	141.8	6.0@1X 4.0@4X
BXZ-532-1-8V	532	1X - 8X	Manual Zoom	12.0	33.0	M51x0.75	54.0	162.0	3.0@1X 3.0@8X
BXZ-532-2-6X	532	2X - 6X	Manual Zoom	23.0	11.0	-	-	89.0	3.0@2X 1.0@6X
BXZ-532-2-8V	532	2X - 8X	Manual Zoom	12.0	33.0	M51x0.75	54.0	158.5	5.0@2X 2.0@8X
BXZ-532-2-10X	532	2X - 10X	Manual Zoom	23.0	35.0	-	-	172.0	8.0@2X 3.0@10X
BXZ-532-1-3X-G	532	1X - 3X	Manual Zoom	23.0	26.0	-	-	120.0	9.0@1X 5.0@3X
BXZ-532-1-5X-G3	532	1X - 5X	Manual Zoom	23.0	28.0	-	-	246.0	6.0@1X 3.0@5X
BXZ-532-2-8X-G-V2	532	2X - 8X	Manual Zoom	12.0	32.0	M53x0.75	64.0	220.0	6.0@2X 2.5@8X
BXZ-355-1-3X	355	1X - 3X	Manual Zoom	23.0	38.0	-	-	131.0	6.0@1X 5.0@3X
BXZ-355-1-4X	355	1X - 4X	Manual Zoom	23.0	28.0	-	-	138.0	5.0@1X 4.0@4X
BXZ-355-1-8V	355	1X - 8X	Manual Zoom	12.0	33.0	M51x0.75	54.0	162.0	3.5@1X 2.5@8X
BXZ-355-2-4X-G7	355	2X - 4X	Manual Zoom	12.0	34.0	-	-	179.5	7.0@2X 6.0@4X
BXZ-355-2-8X-QA	355	2X - 8X	Manual Zoom	23.0	60.0	-	-	200.8	6.0@2X 4.0@8X
BXZ-355-2-10X	355	2X - 10X	Manual Zoom	23.0	35.0	-	-	172.0	8.0@2X 3.0@10X
BXZ-355-2-8X-G-V2	355	2X - 8X	Manual Zoom	12.0	32.0	M53x0.75	64.0	220.0	6.0@2X 2.5@8X
BXZ-266-1-7X	266	1X - 7X	Manual Zoom	23.0	32.0	-	-	191.8	5.0@1X 3.0@7X
BXZ-266-2-7X	266	2X - 7X	Manual Zoom	23.0	32.0	-	-	180.3	5.0@2X 3.0@7X
BXZ-257-1-5X-G4	257	1X -5X	Manual Zoom	12.0	28.0	M54x0.75	65.0	199.0	4.0
BXZ-9.4-0.25-2X	9400	0.25X - 2X	Manual Zoom	23.0	38.0	-	-	119.9	10.0@0.5X 10.0@2X
BXZ-9.4-0.3-1X	9400	0.3X - 1X	Manual Zoom	23.0	14.0	-	-	82.3	9.0@0.3X 10.0@1X
BXZ-9.4-0.5-3X	9400	0.5X - 3X	Manual Zoom	23.0	38.0	-	-	138.0	10.0@0.5X 8.0@3X
BXZ-9.4-1-3X	9400	1X - 3X	Manual Zoom	23.0	30.0	-	-	126.4	9.0@1X 6.0@3X
BXZ-9.4-1-4X-B	9400	1X - 4X	Manual Zoom	18.0	48.0	M27x1	72.0	140.9	10.0@1X 8.0@4X
BXZ-9.4-2-8X	9400	2X - 8X	Manual Zoom	23.0	36.0	-	-	172.0	6.0@2X 3.0@8X
BXZ-9.4-0.5-3X-G8	9400	0.5X - 3X	Manual Zoom	23.0	58.0	-	-	383.0	8.0@0.5X 5.0@3X
BXZ-9.4-1-4X-G7	9400	1X - 4X	Manual Zoom	23.0	49.0	-	-	252.0	7.0@1X 3.0@4X
BXZ-9.6-1-4X-V2	9600	1X -4X	Manual Zoom	17.0	38.0	M55 x 0.75	-	160.0	-
BXZ-10.6-0.25-2X	10600	0.25X - 2X	Manual Zoom	23.0	30.0	M50 x1	50.0	120.0	10.0@0.5X 10.0@2X
BXZ-10.6-0.5-3X	10600	0.5X - 3X	Manual Zoom	23.0	38.0	-	-	138.0	10.0@0.5X 8.0@3X
BXZ-10.6-1-3X	10600	1X - 3X	Manual Zoom	18.0	30.0	-	-	126.4	9.0@1X 6.0@3X
BXZ-10.6-1-4X-B	10600	1X - 4X	Manual Zoom	18.0	48.0	M66 x 0.75	-	140.9	10.0@1X 8.0@4X
BXZ-10.6-1-4X-V2	10600	1X - 4X	Manual Zoom	17.0	38.0	M55 x 0.75	-	160.0	13.0@1X 7.0@4X
BXZ-10.6-1-4X-G	10600	1X - 4X	Manual Zoom	23.0	28.0	-	-	150.0	6.0@1X 4.0@4X
BXZ-10.6-1.5-3X-G9	10600	1.5X - 3X	Manual Zoom	23.0	38.0	-	-	114.5	7.0@1.5X 9.0@3X
BXZ-1550-1-4X-MOT	1550	1X - 4X	Motorized Zoom	23.0	28.0	-	-	277.0	13.0@1X 12.0@4X
BXZ-1550-0.5-5X-MOT	1550	0.5X - 5X	Motorized Zoom	23.0	40.0	-	-	225.9	4.0@0.5X 2.0@5X
BXZ-1064-0.5-2X-D10-MOT	1064	0.5X - 2X	Motorized Zoom	18.0	32.0	-	-	150.0	10.0
BXZ-1064-1-3X-MOT	1064	1X - 3X	Motorized Zoom	23.0	28.0	-	-	179.2	8.0@1X 6.0@3X
BXZ-1064-1-8X-MOT	1064	1X - 8X	Motorized Zoom	23.0	32.0	-	-	159.0	6.0@1X 3.0@8X
BXZ-532-1-4X-G-MOT	532	1X - 4X	Motorized Zoom	23.0	18.0	-	-	168.0	5.0@1X 2.0@4X
BXZ-532-1-8X-MOT	532	1X - 8X	Motorized Zoom	23.0	32.0	-	-	159.0	6.0@1X 2.0@8X
BXZ-355-1-8X-MOT	355	1X - 8X	Motorized Zoom	23.0	32.0	-	-	136.0	4.0@1X 2.0@8X
BXZ-266-1-3X-G	266	1 - 3X	Manual Zoom	16.0	26.0	M46x1	50.0	120.0	6.0@1X 3.0@4X
BXZ-266-1-7X-MOT	266	1X - 7X	Motorized Zoom	23.0	32.0	-	-	136.0	5.0@1X 3.0@7X
BXZ-257-1-5X-G4-MOT	257	1X - 5X	Motorized Zoom	12.0	28.0	-	50.0	207.0	7.0@1X 4.0@5X
BXZ-9.4-0.25-2X-MOT	9400	0.25X - 2X	Motorized Zoom	23.0	32.0	-	-	130.0	12.0
BXZ-9.4-2-8X-MOT	9400	2X - 8X	Motorized Zoom	23.0	36.0	-	-	190.0	6.0@2X 3.0@8X
BXZ-10.6-1-3.8X-MOT-V5	10600	1X - 3.8X	Motorized Zoom	18.0	47.0	-	-	166.0	10.0
BXZ-10.6-1-4X-MOT	10600	1X - 4X	Motorized Zoom	23.0	47.0	-	-	189.0	10.0@1X 8.0@4X
BXZ-10.6-2-6X-MOT	10600	2X - 6X	Motorized Zoom	23.0	28.0	-	-	213.0	3.5@2X 3.0@6X

Wavelength Opto-Electronic Beam Expanders Products Table

2.3 Laser Scan Heads

Optics for Additive Manufacturing & 3D Printing Systems - Laser Scan Heads

Scan heads integrate galvanometer mirrors, scan lenses, and control electronics to enable fast and accurate beam steering over the build area. These systems are critical in powder-bed fusion and photopolymer-based printing methods, where high-speed and high-precision laser movement determines print quality. Our scan heads offer dynamic performance with minimal drift, suitable for industrial-scale additive manufacturing.

Part Number	Wavelength (nm)	Scan Rate (lines/s)	Input CA (mm)	f-theta FL (mm)	Field Size (mm)	Output Scan Angle	Galvanometers
SHP-355-DUAL	355	217 - 616	15	255	160 x 160	±16°	X & Y Axes
SHP-515-DUAL	515	217 - 616	15	255	160 x 160	±16°	X & Y Axes
SHP-532-DUAL	532	217 - 616	15	255	160 x 160	±16°	X & Y Axes
SHP-1030-DUAL	1030	217 - 616	15	255	160 x 160	±16°	X & Y Axes
SHP-1064-DUAL	1064	217 - 616	15	255	160 x 160	±16°	X & Y Axes
SHP-355-SINGLE	355	150 - 800	15	255	-	±16°	Y-Axis optional
SHP-532-SINGLE	532	150 - 800	15	255	-	±16°	Y-Axis optional
SHP-1064-SINGLE	1064	150 - 800	15	255	-	±16°	Y-Axis optional
SHP-10.6-SINGLE	10600	150 - 800	15	255	-	±16°	Y-Axis optional

Wavelength Opto-Electronic USP Laser Polygon Scan Heads Products Table

2.4. Collimating and Focusing Lenses

Optics for Additive Manufacturing & 3D Printing Systems - Collimating and Focusing Lenses

These optics are used in combination to first collimate the laser beam emitted from fiber or diode laser sources and then focus it precisely onto the workpiece. The collimating lens ensures a parallel beam profile, while the focusing lens ensures high energy density at the material surface. Both lenses must handle high laser power levels and operate reliably under challenging thermal and environmental conditions.

Product Type	Part Number	Wavelength (nm)	EFL (mm)	Lens Dia (mm)	Optional Interface
Laser Collimator	COL-450-D30-F50	450	50	30	QBH/SMA
Laser Collimator	COL-450-D40-F68	450	68	40	QBH/SMA
Laser Collimator	COL-450-D42-F75	450	75	42	QBH/SMA
Laser Collimator	COL-450-D52-F100	450	100	52	QBH/SMA
Laser Collimator	COL-450-D60-F110Q	450	110	60	QBH/SMA
Laser Collimator	COL-450-D75-F125	450	125	75	QBH/SMA
Laser Collimator	COL-900-D25-F30	900-915	30	25	SMA
Laser Collimator	COL-900-D30-F50	900-915	50	30	SMA
Laser Collimator	COL-1064-D50.8-F100	1030-1080	100	50.8	QBH
Laser Collimator	COL-1070-D25-F30	1030-1080	30	25	QBH/SMA
Laser Collimator	COL-1070-D25-F41.5	1030-1080	41.5	25	QBH
Laser Collimator	COL-1070-D25-F50-NA0.22	1030-1080	50	25	QBH
Laser Collimator	COL-1070-D25-F60-NA0.173	1030-1080	60	25	QBH
Laser Collimator	COL-1070-D25-F60-NA0.186	1030-1080	60	25	QBH
Laser Collimator	COL-1070-D25-F83-NA0.131	1030-1080	83	25	QBH
Laser Collimator	COL-1070-D25-F85-NA0.129	1030-1080	85	25	QBH
Laser Collimator	COL-1070-D25-F100-NA0.11	1030-1080	100	25	QBH
Laser Collimator	COL-1070-D25-F150	1030-1080	150	25	QBH
Laser Collimator	COL-1070-D30-F75	1030-1080	75	30	QBH
Laser Collimator	COL-1070-D30-F85	1030-1080	85	30	QBH
Laser Collimator	COL-1070-D30-F100	1030-1080	100	30	QBH
Laser Collimator	COL-1070-D30-F125	1030-1080	125	30	QBH
Laser Collimator	COL-1070-D30-F150	1030-1080	150	30	QBH
Laser Collimator	COL-1070-D40-F80	1030-1080	80	40	QBH
Laser Collimator	COL-1070-D40-F120-NA0.167	1030-1080	120	40	QBH
Laser Collimator	COL-1070-D40-F150	1030-1080	150	40	QBH
Laser Collimator	COL-1070-D50-F67	1030-1080	67	50	QBH
Laser Collimator	COL-1070-D50-F120-NA0.187	1030-1080	120	50	QBH
Laser Collimator	COL-1070-D50-F160-NA0.147	1030-1080	160	50	QBH
Laser Collimator	COL-1070-D50-F200-NA0.116	1030-1080	200	50	QBH
Laser Collimator	COL-1070-D50-F250-NA0.094	1030-1080	250	50	QBH

2.5. Beam Shaping Optics

Standard laser beams typically exhibit a Gaussian intensity profile, which can result in uneven energy distribution across the target area. Beam shapers modify this into a top-hat or other uniform profile, enabling more consistent and predictable melting or curing of materials. This uniformity is particularly beneficial in processes where surface finish and structural integrity are critical.

Part No.	Wavelength(nm)	Input BeamDia (mm)	F-Theta FL (mm)	DOE Size (mm)	Beam Shape	Flat Top Beam Size (μm)
DOE-SCAN-355-100C-3 *NEW*	355	3.0	100	16 x 16 x 3	Circular	20
DOE-SCAN-355-TSL50-C *NEW*	355	3.5	50	16 x 16 x 3	Circular	10
DOE-SCAN-355-160C *NEW*	355	1.0	160	16 x 16 x 5.5	Circular	125
DOE-SCAN-355-160S *NEW*	355	3.5	160	16 x 16 x 3	Square	35
DOE-SCAN-532-330	532	3.0	330	-	Circular	120
DOE-SCAN-1064-163	1064	7.0	163	25.4 x 3.0	Rectangular	164 x 125 /201 x 126
DOE-SCAN-1064-254C	1064	4.5	254	16 x 16 x 3	Circular	116
DOE-SCAN-1064-163C	1064	5.0	163	25.4 x 3.0	Circular	118
DOE-SCAN-9.4-100	9400	12.0	100	25.4 x 3.0	Rectangular	150 x 200

2.6 Protective Windows & Debris Shields

Part Number	Wavelength (nm)	Material	Diameter (mm)	Thickness (mm)	Application
WFS-37-7 *NEW*	1030-1090	Fused Silica	37.0	7.0	Protective
WBK-0.5-2G	532	N-BK7	12.7	2.0	Protective
WBK-24-1.4-YG	532 / 1064	N-BK7	24.0	1.4	Protective
WBK-25-1.1	1064	N-BK7	25.0	1.1	Protective
WBK-30-1.4	1064	N-BK7	30.0	1.4	Protective
WBK-38-3	1064	N-BK7	38.0	3.0	Protective
WBK-60-3	1064	N-BK7	60.0	3.0	Protective
WBK-72-3	1064	N-BK7	72.0	3.0	Protective
WBK-74-2.5G	532	N-BK7	74.0	2.5	Protective
WBK-75-1.6G	532/1064	N-BK7	75.0	1.6	Protective
WBK-76-3	1064	N-BK7	76.0	3.0	Protective
WBK-78-1.5	1064	N-BK7	78.0	1.5	Protective
WBK-80-2.5	532/1064	N-BK7	80.0	2.5	Protective
WBK-84-2YG	532 / 1064	N-BK7	84.0	2.0	Protective
WBK-85-2	1064	N-BK7	85.0	2.0	Protective
WBK-86-2.5G	532/1064	N-BK7	86.0	2.5	Protective
WBK-96-3	1064	N-BK7	96.0	3.0	Protective
WBK-97-2.5	1064	N-BK7	97.0	2.5	Protective
WBK-98-2.5	1064	N-BK7	98.0	2.5	Protective
WBK-106-3	1064	N-BK7	106.0	3.0	Protective
WBK-108-2.5GR	532 / 650	N-BK7	108.0	2.5	Protective
WBK-110-2.5	1064	N-BK7	110.0	2.5	Protective
WBK-116-2	1064	N-BK7	116.0	2.0	Protective
WBK-116-3	1064	N-BK7	116.0	3.0	Protective
WBK-118-3G	532	N-BK7	118.0	3.0	Protective
WBK-120-3	1064	N-BK7	120.0	3.0	Protective
WBK-123-3	1064	N-BK7	123.0	3.0	Protective
WBK-126-3G	532/1064	N-BK7	126.0	3.0	Protective
WBK-128-2	1064	N-BK7	128.0	2.0	Protective
WBK-150-3	1064	N-BK7	150.0	3.0	Protective
WFS-15-2	1030-1090	Fused Silica	15.0	2.0	Protective
WFS-16-1.55-YG	515-545 / 1030-1090	Fused Silica	16.0	1.6	Protective
WFS-18-3	1030-1090	Fused Silica	18.0	3.0	Protective
WFS-20-2-YG	515-545 / 1030-1090	Fused Silica	20.0	2.0	Protective
WFS-22-3	1030-1090	Fused Silica	22.0	3.0	Protective
WFS-25-3	1030-1090	Fused Silica	25.0	3.0	Protective
WFS-1-3UG	1030-1090/515-545/343-355	Fused Silica	25.4	3.0	Protective
WFS-28-4	1030-1090	Fused Silica	28.0	4.0	Protective
WFS-30-5	1030-1090	Fused Silica	30.0	5.0	Protective
WFS-36-2	1030-1090	Fused Silica	36.0	2.0	Protective
WFS-1.5-5	1030-1090	Fused Silica	38.1	5.0	Protective
WFS-43-2G	515-545	Fused Silica	43.0	2.0	Protective
WFS-50-1.5	1030-1090	Fused Silica	50.0	1.5	Protective
WFS-55-1.5	1030-1090	Fused Silica	55.0	1.5	Protective
WFS-70-9.5	1030-1090	Fused Silica	70.0	9.5	Protective
WFS-90-3U	343-355	Fused Silica	90.0	3.0	Protective
WFS-104-3U	343-355	Fused Silica	104.0	3.0	Protective
WFS-104-3	1030-1090	Fused Silica	104.0	3.0	Protective
WFS-110-2.5	1030-1090	Fused Silica	110.0	2.5	Protective
WFS-110-3	1030-1090	Fused Silica	110.0	3.0	Protective
WFS-140-4	1030-1090	Fused Silica	140.0	4.0	Protective
WFS-150-3	1030-1090	Fused Silica	150.0	3.0	Protective
WFS-170-3	1030-1090	Fused Silica	170.0	3.0	Protective
WFS-3.5-1E	2940	Fused Silica	3.5	1.0	Medical Laser Er:YAG
WSP-15.7-1.1	1064/750	Sapphire	15.7	1.1	Medical Laser
WSP-1-3	1064/750	Sapphire	25.4	3.0	Medical Laser
WBK-0.5-2N	1064/532	N-BK7	12.7	2.0	Medical Laser Nd:YAG
WBK-0.6-2N	1064/532	N-BK7	15.2	2.0	Medical Laser Nd:YAG
WBK-0.75-2.5N	1064/532	N-BK7	19.1	2.5	Medical Laser Nd:YAG
WBK-1-3N	1064/532	N-BK7	25.4	3.0	Medical Laser Nd:YAG
WBK-1.5-4N	1064/532	N-BK7	38.1	4.0	Medical Laser Nd:YAG
WBK-16-1A	755/633	N-BK7	16.0	1.0	Medical Laser Alex
WBK-0.5-2R	694/633	N-BK7	12.7	2.0	Medical Laser Ruby
WBK-0.6-2R	694/633	N-BK7	15.2	2.0	Medical Laser Ruby
WBK-0.75-2.5R	694/633	N-BK7	19.1	2.5	Medical Laser Ruby
WBK-1-3R	694/633	N-BK7	25.4	3.0	Medical Laser Ruby
WBK-1.5-4R	694/633	N-BK7	38.1	4.0	Medical Laser Ruby
WZ-0.5-2	10600/9400	ZnSe	12.7	2.0	Protective
WZ-18-2	10600/9400	ZnSe	18.0	2.0	Protective
WZ-0.75-3	10600/9400	ZnSe	19.1	3.0	Protective
WZ-1-3	10600/9400	ZnSe	25.4	3.0	Protective
WZ-1.1-3	10600/9400	ZnSe	27.9	3.0	Protective
WZ-1.5-3	10600/9400	ZnSe	38.1	3.0	Protective
WZ-50-3	10600/9400	ZnSe	50.0	3.0	Protective
WZ-2-5	10600/9400	ZnSe	50.8	5.0	Protective
WZ-55-3	10600/9400	ZnSe	55.0	3.0	Protective
WZ-60-3	10600/9400	ZnSe	60.0	3.0	Protective
WZ-75-3	10600/9400	ZnSe	75.0	3.0	Protective
WZ-80-3	10600/9400	ZnSe	80.0	3.0	Protective
WZ-88-3	10600/9400	ZnSe	88.0	3.0	Protective
WZ-90-3	10600/9400	ZnSe	90.0	3.0	Protective
WZ-110-5	10600/9400	ZnSe	110.0	5.0	Protective
WZ-180-6	10600/9400	ZnSe	180.0	6.0	Protective
WZB-0.5x1.3-2C(Corner cut)	10600/9400	ZnSe	12.7 x 33.0	2.0	Protective
WZB-0.5x1.3-2	10600/9400	ZnSe	12.7 x 33.0	2.0	Protective
WZ-15x18-1	10600/9400	ZnSe	15.0 x 18.0	1.0	Protective
WZB-0.6x1.5-2	10600/9400	ZnSe	15.2 x 38.1	2.0	Protective
WZB-0.7x1.8-2	10600/9400	ZnSe	17.7 x 45.7	2.0	Protective
WZB-0.75x1.5-3	10600/9400	ZnSe	19.0 x 38.1	3.0	Protective
WZB-20.3x52.8-3	10600/9400	ZnSe	20.3 x 52.8	3.0	Protective
WZB-25x50-3	10600/9400	ZnSe	25.0 x 50.0	3.0	Protective
WZB-25x66-3	10600/9400	ZnSe	25.0 x 66.0	3.0	Protective
WZB-1.0x2.6-3	10600/9400	ZnSe	25.4 x 66.0	3.0	Protective
WZB-26.42x10.16-2	10600/9400	ZnSe	26.42 x 10.16	2.0	Protective
WZB-30x75-5	10600/9400	ZnSe	30.0 x 75.0	5.0	Protective
WZ-31.75x31.75-4	10600/9400	ZnSe	31.7 x 31.7	4.0	Protective
WZB-1.5x3.9-4	10600/9400	ZnSe	38.1 x 99.1	4.0	Protective
WZ-50x80-3	10600/9400	ZnSe	50.0 x 80.0	3.0	Protective
WZB-2.0x5.2-5	10600/9400	ZnSe	50.8 x 132.1	5.0	Protective
WZB-53x20-3	10600/9400	ZnSe	53.0 x 20.0	3.0	Protective
WZ-65x85-3	10600/9400	ZnSe	65.0 x 85.0	3.0	Protective
WZ-90x60-3	10600/9400	ZnSe	90.0 x 60.0	3.0	Protective
WZ-92x68-3	10600/9400	ZnSe	92.0 x 68.0	3.0	Protective
WZ-95x95-3	10600/9400	ZnSe	95.0 x 95.0	3.0	Protective
WZ-150x105-3	10600/9400	ZnSe	150.0 x 105.0	3.0	Protective
WZ-185x125-6	10600/9400	ZnSe	185.0 x 125.0	6.0	Protective

During high-power laser operation, byproducts such as molten spatter, fine powder, or resin fumes can contaminate and damage internal optics. Protective windows—also known as debris shields—act as a barrier, safeguarding key optical elements such as scan lenses and beam expanders. Our laser-grade protective windows feature high transmission, anti-reflection coatings, and are designed for easy replacement, minimizing system downtime and maintenance costs.

3. Why Optics for Additive Manufacturing Matters

Optics for Additive Manufacturing & 3D Printing Systems - Why Optics for Additive Manufacturing Matters

In laser-based additive manufacturing, the performance of the entire system hinges not only on the laser source itself but also on the precision of the optical components responsible for directing, shaping, and focusing the beam. Even with a high-powered laser, suboptimal optics can compromise the entire process. Poorly designed, misaligned, or degraded optics can lead to a range of issues that directly impact the quality and reliability of printed parts, including:

3.1 Uneven Melting or Curing

Inconsistent beam intensity or poor focus can result in non-uniform energy distribution across the material surface. This may cause incomplete melting or curing, leading to weak interlayer bonding or surface defects.

3.2 Warping or Micro-Cracking

Improper thermal control due to misdirected or fluctuating laser energy can introduce internal stresses during cooling. These thermal stresses often lead to warping, shrinkage, or even micro-cracks in finished components, affecting their dimensional accuracy and mechanical integrity.

3.3 Reduced Resolution and Part Accuracy

Optics influence the laser spot size and positioning accuracy. If the optical path is not precisely controlled, the resulting spot may be too large, distorted, or off-target—reducing the resolution and fidelity of the final printed geometry.

3.4 Inefficient Energy Usage

Scattered or defocused beams waste laser energy, requiring longer build times or higher power settings to compensate. This inefficiency not only increases operating costs but also accelerates wear on system components.

At Wavelength Opto-Electronic, we supply high-precision optical components specifically engineered for the demands of industrial additive manufacturing systems. Our optics are designed for excellent beam quality preservation, high laser damage thresholds, and minimal aberration. The result is optimized energy delivery, enhanced part quality, and improved process consistency—ensuring your additive manufacturing system performs at its full potential with minimal downtime or rework.

4. Applications Across Industries

Additive manufacturing has transformed from a prototyping tool into a reliable method for producing high-performance parts across a wide range of industries. The success of these applications heavily depends on the precision and reliability of optical components used in laser-based 3D printing systems.

At Wavelength Opto-Electronic, our advanced optics enable accurate beam control, high throughput, and consistent quality—making them essential in the following sectors:

4.1 Aerospace

In aerospace, weight reduction without compromising strength is critical. Additive manufacturing allows the creation of lightweight structural parts with intricate internal lattices and complex geometries that are difficult or impossible to achieve using conventional methods. Precision optics ensure consistent layer fusion and dimensional accuracy, crucial for airworthiness and safety compliance.

4.2 Medical

The medical industry leverages additive manufacturing for patient-specific implants, prosthetics, and dental restorations. These parts require extremely fine resolution and bio-compatible materials. Optical systems in 3D printers must deliver highly controlled laser energy to produce smooth surface finishes and precise geometrical features suitable for implantation or clinical use.

4.3 Automotive

Automotive manufacturers use additive manufacturing for rapid prototyping, tooling, and even low-volume production of functional parts. From engine components to interior trim, optics enable fast scanning and accurate reproduction of complex features, accelerating the design-to-production cycle.

4.4 Consumer Electronics

In devices like smartphones, wearables, and compact gadgets, space and precision are critical. Additive manufacturing supports the production of miniature housings, brackets, and internal supports. Optical components ensure high-resolution builds with excellent surface finish and tight tolerances required for assembly and performance.

4.5 Industrial Tooling

Molds, dies, and tooling inserts benefit from additive manufacturing’s ability to incorporate conformal cooling channels and complex internal pathways. Laser optics must deliver uniform energy distribution and precise beam control to fabricate tools that improve cycle times, extend service life, and reduce material waste in high-volume manufacturing.

5. Why Choose Wavelength Opto-Electronic Optics for Additive Manufacturing

Laser Optics Precision Optics Optics Manufacturer

With more than 20 years of experience in optical design and manufacturing, Wavelength Opto-Electronic is a trusted partner for laser-based additive manufacturing solutions. Our deep understanding of photonics, combined with precision engineering, enables us to deliver optics that meet the exacting demands of industrial 3D printing systems.

We offer both customized and off-the-shelf optical components, including:

F-Theta Scan Lenses for CO₂, fiber, and UV laser systems, optimized for flat-field scanning, minimal distortion, and high throughput.
Beam Expanders designed to manipulate laser beam diameter for better focusability and control of energy density.
Collimators and Focusing Lenses engineered for high-power, high-stability performance in harsh additive manufacturing environments.

Our optical solutions are built with high laser damage thresholds and thermal stability, ensuring long-term reliability even in demanding high-power or high-heat applications. For manufacturers requiring a turnkey solution, we also offer optomechanical integration and assembly services, enabling seamless alignment and compatibility with existing laser modules and motion systems.

Whether your system operates in the UV, visible, NIR, or CO₂ wavelength range, we provide materials and coatings specifically tailored for maximum transmission and durability.

Our commitment is to help additive manufacturing system integrators and manufacturers:

Achieve sharper resolution and finer feature control
Increase print speed through faster, more precise scanning
Reduce part failure rates with stable, uniform energy delivery
Extend system uptime through rugged, low-maintenance optics

Whether you are building a next-generation 3D printing platform or optimizing an existing system, Wavelength Opto-Electronic is ready to support you with precision optical components tailored to your laser type, process requirements, and industry needs.

Contact us today to learn more about our complete range of optics for additive manufacturing applications and how we can help you achieve your performance goals.
